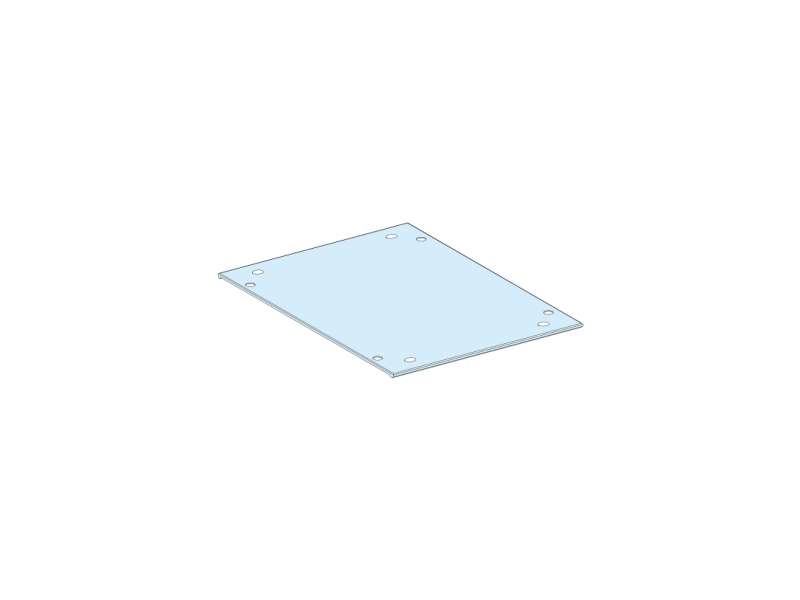

Schneider Electric Roof plate, PrismaSeT P, for enclosure W 300mm D 400mm, IP30; LVS08433
Roof plate, PrismaSeT P, for enclosure W 300mm D 400mm, IP30...
VAT-exclusive price: 3.631,00 |
VAT-inclusive price: 4.357,20 |
Roof plate, PrismaSeT P, for enclosure W 300mm D 400mm, IP30
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Roof |
| Range compatibility | PrismaSeT (PrismaSeT P) enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type | Metal enclosure |
| installation description | Cubicle duct - width 300 mm, depth 400 mm |
| Standards |
IEC 61439-1 for enclosure IEC 61439-2 for enclosure |
| Product certifications | ASTA |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Textured Matt |
| Colour | White (RAL 9003) |
| Special colour options | Yes |
| Width | 300 mm |
| Depth | 400 mm |
| Net weight | 1.36 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP30 for enclosure |
|---|---|
| IK degree of protection | IK08 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 32.5 cm |
| Package 1 Length | 42.5 cm |
| Package 1 Weight | 1.41 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 93.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 180.5 kg |
