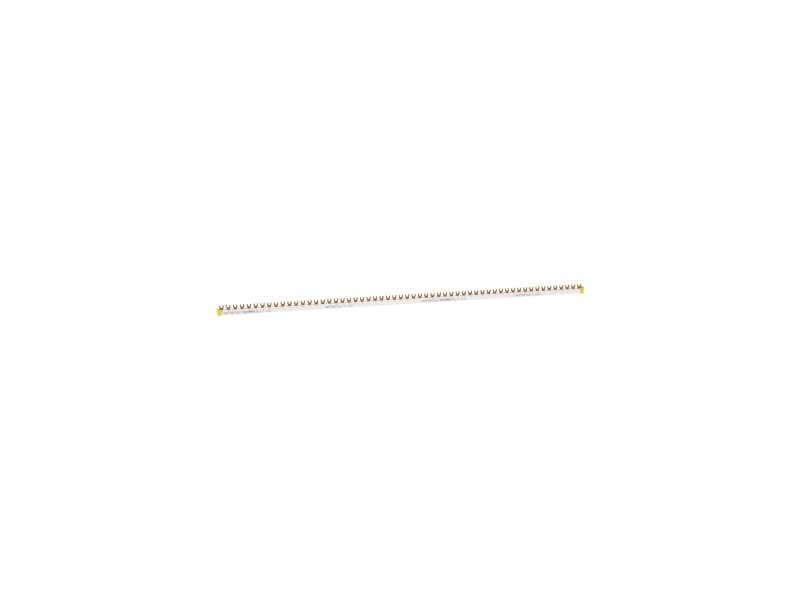

Schneider Electric Resi9 - češljasta sabirnica - 3L - korak 18 mm - 57 modula - 63 A;R9XFH357

Resi9 - comb busbar - 3L - 18 mm pitch - 57 modules - 63 A...

Brand: Schneider Electric
Product Code: R9XFH357
Availability: Check availability

VAT-exclusive price: 2.526,00

VAT-inclusive price: 3.031,20

Qnt:

Description
Specification

Resi9 - comb busbar - 3L - 18 mm pitch - 57 modules - 63 A

Main
range	Resi9
product or component type	Comb busbar
mounting mode	Horizontal
accessory / separate part category	Connection accessory
lines description	3L
Length in 18 mm modules	57

Complementary
number of ways	19 ways 3 L
poles configuration for 1 way	1 x 3P
connection pitch	18 mm
connector type	Fork
distance between way	54 mm
marking	L1 L2 L3
insulation	Insulated
device presentation	Cuttable
[Ie] rated operational current	63 A at 40 °C
[Ue] rated operational voltage	400 V AC Ph/Ph
[Ui] rated insulation voltage	500 V AC
mounting location	Bottom on biconnect
9 mm pitches	114
width	1000 mm
colour	White (RAL 9003)
range compatibility	Acti9 K60 Resi9 MCB Resi9 RCBO Resi9 RCCB Resi9 SWITCH

Environment
standards	IEC 60947-7-1 IEC 61439-2
product certifications	CE
fire resistance	960 °C ( 30 s ) conforming to IEC 60695-2-1
pollution degree	3

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	429.0 g
Package 1 Height	2.6 cm
Package 1 width	1.6 cm
Package 1 Length	101.7 cm
Unit Type of Package 2	P12
Number of Units in Package 2	270
Package 2 Weight	137.334 kg
Package 2 Height	55.0 cm
Package 2 width	80.0 cm
Package 2 Length	120.0 cm
Unit Type of Package 3	BB1
Number of Units in Package 3	5
Package 3 Weight	2.321 kg
Package 3 Height	5.5 cm
Package 3 width	107.0 cm
Package 3 Length	8.8 cm
