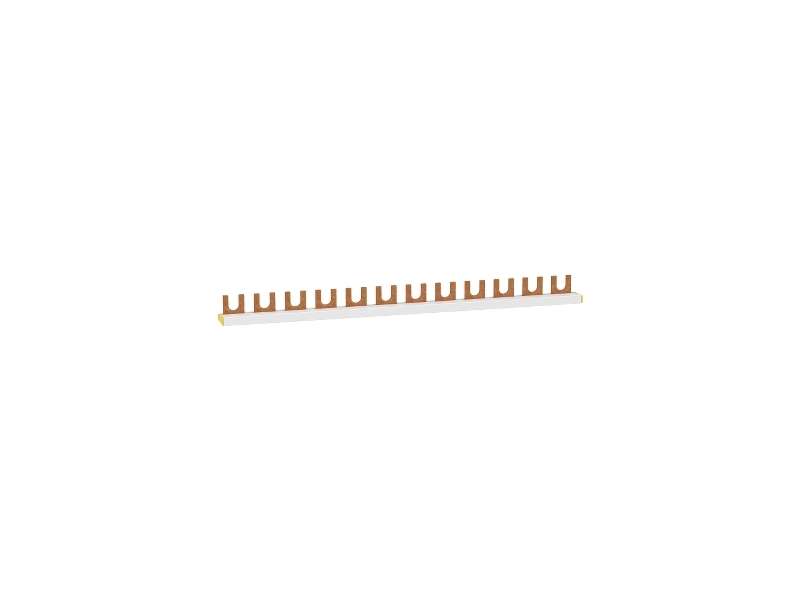

Schneider Electric Resi9 češljasta sabirnica - 1P - 12 mod.;R9XFH112

Resi9 - comb busbar - 1L - 18 mm pitch - 12 modules - 63 A...

Brand: Schneider Electric
Product Code: R9XFH112
Availability: Check availability

VAT-exclusive price: 397,00

VAT-inclusive price: 476,40

Qnt:

Description
Specification

Resi9 - comb busbar - 1L - 18 mm pitch - 12 modules - 63 A

Main
range	Resi9
product or component type	Comb busbar
mounting mode	Horizontal
accessory / separate part category	Connection accessory
lines description	1L
Length in 18 mm modules	12

Complementary
number of ways	12 ways 1 L
poles configuration for 1 way	1 x 1P
connection pitch	18 mm
connector type	Fork
distance between way	18 mm
marking	L
insulation	Insulated
device presentation	Cuttable
[Ie] rated operational current	63 A at 40 °C
[Ue] rated operational voltage	230 V AC Ph/N
[Ui] rated insulation voltage	500 V AC
mounting location	Bottom on biconnect
9 mm pitches	24
width	220 mm
colour	White (RAL 9003)
range compatibility	Acti9 K60 Resi9 MCB Resi9 RCBO Resi9 RCCB Resi9 SWITCH

Environment
standards	IEC 60947-7-1 IEC 61439-2
product certifications	CE
fire resistance	960 °C ( 30 s ) conforming to IEC 60695-2-1
pollution degree	3

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	42.9 g
Package 1 Height	1.5 cm
Package 1 width	1.5 cm
Package 1 Length	21.2 cm
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Weight	500.0 g
Package 2 Height	5.8 cm
Package 2 width	8.5 cm
Package 2 Length	25.0 cm
Unit Type of Package 3	S02
Number of Units in Package 3	80
Package 3 Weight	4.326 kg
Package 3 Height	15.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm
