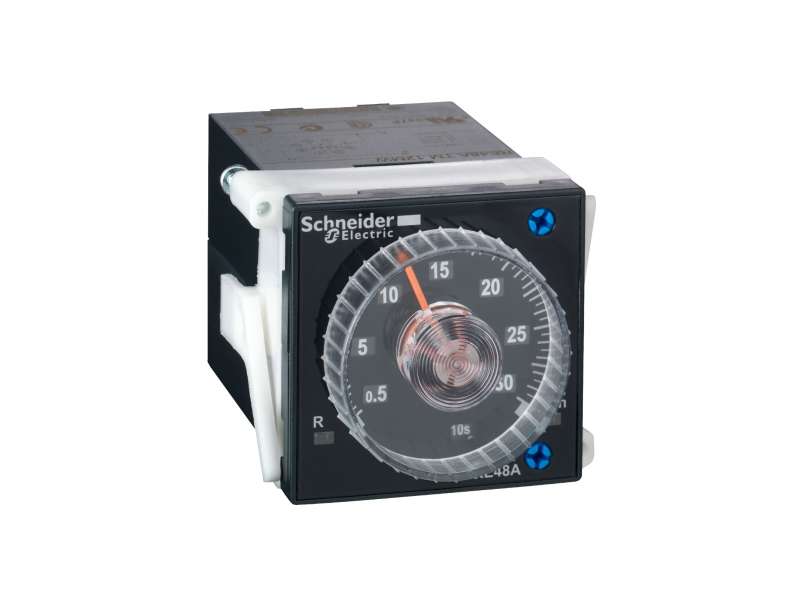

Schneider Electric Relej zakasnelog uključenja - 0.02 s..300 h - 24..240 V AC - 2 OC ; RE48ATM12MW
Modular timing relay, 5 A, 2 CO, 0.02 s...-300 h, on-delay, 24...240 V AC/DC...
VAT-exclusive price: 13.895,00 |
VAT-inclusive price: 16.674,00 |
Modular timing relay, 5 A, 2 CO, 0.02 s...-300 h, on-delay, 24...240 V AC/DC
| range of product |
Zelio Time
|
|
|---|---|---|
| product or component type |
Electronic timing relay
|
|
| electrical connection |
Plug-in sub-base 8 pin(s)
|
|
| discrete output type |
Relay
|
|
| contacts type and composition |
2 C/O timed contacts, AgNi (cadmium free)
|
|
| component name |
RE48
|
|
| time delay type |
A
|
|
| time delay range |
5...300 h
2...120 min 0.5...30 h 0.2...12 h 0.2...12 min 0.2...12 s 0.5...30 min 2...120 h 2...120 s 0.02...1.2 s 0.5...30 s 5...300 s 0.05...3 s 5...300 min |
|
| [Us] rated supply voltage |
24...240 V AC/DC 50/60 Hz
|
|
| voltage range |
0.85...1.1 Us AC
0.9...1.1 Us DC |
|
| [In] rated current |
5 A
|
| product front plate size |
48 x 48 mm
|
|
|---|---|---|
| control type |
Selector switch front panel
|
|
| housing material |
Self-extinguishing
|
|
| repeat accuracy |
+/- 0.2 % of the maximum setting value conforming to IEC 61812-1
|
|
| temperature drift |
+/- 0.02 %/°C of the maximum setting value conforming to IEC 61812-1
|
|
| voltage drift |
+/- 0.2 %/V of the maximum setting value at 48...240 V
+/- 1 %/V of the maximum setting value at 24...48 V |
|
| setting accuracy of time delay |
+/- 5 % of full scale at 25 °C conforming to IEC 61812-1
|
|
| minimum pulse duration |
20 ms
|
|
| reset time |
25 ms on de-energisation
|
|
| pick up duration |
55 ms
|
|
| on-load factor |
100 %
|
|
| power consumption in VA |
1.1 VA at 24 V
4.8 VA at 240 V |
|
| power consumption in W |
0.5 W at 24 V
1.7 W at 240 V |
|
| breaking capacity |
1250 VA
|
|
| minimum switching current |
100 mA
|
|
| maximum switching current |
5 A
|
|
| maximum switching voltage |
250 V AC/DC
|
|
| electrical durability |
100000 cycles
|
|
| mechanical durability |
30000000 cycles
|
|
| output voltage |
240 V at 5 A AC-12
30 V at 2 A DC-13 240 V at 1.5 A AC-15 |
|
| marking |
CE
|
|
| surge withstand |
1 kV differential mode conforming to IEC 61000-4-5 level 3
2 kV common mode conforming to IEC 61000-4-5 level 3 |
|
| mounting support |
Panel mounted: system supplied with the product
Base mounted: socket |
|
| local signalling |
1 LED (yellow)output relay state:
LED indicator (green)flashing: relay energised timing in progress: LED indicator (green)on steady: relay energised, no timing in progress: |
|
| net weight |
0.14 kg
|
| humidity drift |
+/- 0.05 %/%RH of the maximum setting value conforming to IEC 61812-1
|
|
|---|---|---|
| immunity to microbreaks |
10 ms
|
|
| dielectric strength |
1 kV 1 mA/1 minute conforming to IEC 61812-1
|
|
| protection against electric shocks |
4 kV class III conforming to IEC 60664-1
4 kV class III conforming to IEC 61812-1 |
|
| standards |
73/23/EEC
93/68/EEC EN 50082-1/2 89/336/EEC EN 50081-1/2 IEC 61812-1 IEC 60669-2-3 |
|
| product certifications |
GL
UL CULus C-Tick CSA |
|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-20…50 °C
|
|
| IP degree of protection |
IP40 (housing) conforming to IEC 60529
IP50 (front face) conforming to IEC 60529 |
|
| vibration resistance |
0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
|
|
| relative humidity |
93 % without condensation conforming to IEC 60068-2-3
|
|
| resistance to electrostatic discharge |
6 kV in contact conforming to EN/IEC 61000-4-2 level 3
8 kV in air conforming to EN/IEC 61000-4-2 level 3 |
|
| resistance to electromagnetic fields |
10 V/m 26 MHz to 1 GHz conforming to IEC 61000-4-3 level 3
|
|
| resistance to fast transients |
2 kV (capacitive connecting clip) conforming to EN/IEC 61000-4-4 level 4
4 kV (direct) conforming to EN/IEC 61000-4-4 level 4 |
|
| immunity to radioelectric fields |
10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 level 3
|
|
| immunity to voltage dips |
30 % / 10 ms conforming to EN/IEC 61000-4-11
60 % / 100 ms conforming to EN/IEC 61000-4-11 95 % / 5 s conforming to EN/IEC 61000-4-11 |
|
| disturbance radiated/conducted |
Class B 0.15...30 MHz conforming to EN 55022 (EN 55011 group 1)
|
| Package 1 Weight |
0.127 kg
|
|
|---|---|---|
| Package 1 Height |
0.570 dm
|
|
| Package 1 width |
0.620 dm
|
|
| Package 1 Length |
1.030 dm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
-
Zelio Time RE48ATM12MW
