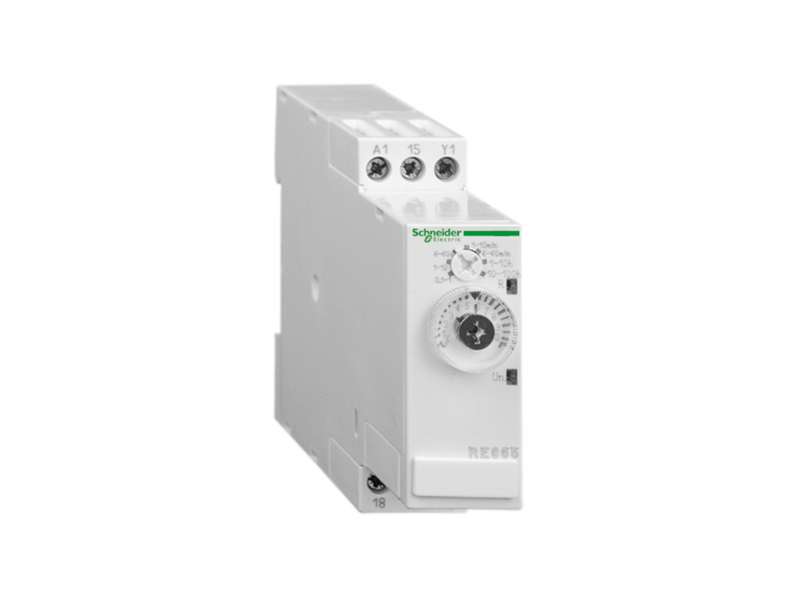

Schneider Electric Relej - zakasnelo uključenje - 1 s..100 h - 24..240 V AC - 2 kontakta ; RE88865215
on-delay timing relay - 1 s ..100 h - 24..240 V AC - 2 contacts...
Price on request
on-delay timing relay - 1 s
..100 h - 24..240 V AC - 2 contacts
| range of product |
Zelio Time
|
|
|---|---|---|
| product or component type |
Industrial timing relay
|
|
| contacts type and composition |
2 C/O timed contacts, AgNi (cadmium free)
|
|
| component name |
RE88865
|
|
| time delay type |
A
At |
|
| time delay range |
1 h
10 s 1 s 1 min 10 min 100 h 10 h |
| discrete output type |
Relay
|
|
|---|---|---|
| width pitch dimension |
22.5 mm
|
|
| [Us] rated supply voltage |
24 V DC
24...240 V AC 50/60 Hz |
|
| voltage range |
0.85...1.1 Us
|
|
| connections - terminals |
Screw terminals, 2 x 1.5 mm² with cable end
Screw terminals, 2 x 2.5 mm² without cable end |
|
| housing material |
Self-extinguishing
|
|
| repeat accuracy |
+/- 0.5 % conforming to IEC 61812-1
|
|
| temperature drift |
+/- 0.05 %/°C
|
|
| voltage drift |
+/- 0.2 %/V
|
|
| setting accuracy of time delay |
+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
|
|
| minimum pulse duration |
100 ms under load
30 ms |
|
| maximum reset time |
100 ms on de-energisation
|
|
| on-load factor |
100 %
|
|
| maximum power consumption |
32 VA at 240 V
|
|
| maximum power consumption |
0.6 W at 24 V
1.5 W at 240 V |
|
| breaking capacity |
2000 VA
|
|
| breaking capacity |
80 W
|
|
| minimum switching current |
10 mA
|
|
| maximum switching current |
8 A
|
|
| maximum switching voltage |
250 V
|
|
| electrical durability |
100000 cycles at 8 A, 250 V for resistive load
|
|
| mechanical durability |
5000000 cycles
|
|
| [Uimp] rated impulse withstand voltage |
5 kV for 1.2…50 µs conforming to IEC 60664-1
5 kV for 1.2…50 µs conforming to IEC 61812-1 |
|
| marking |
CE
|
|
| creepage distance |
4 kV/3 conforming to IEC 60664-1
|
|
| surge withstand |
1 kV differential mode conforming to IEC 61000-4-5 level 3
2 kV common mode conforming to IEC 61000-4-5 level 3 |
|
| mounting support |
35 mm symmetrical mounting rail conforming to EN 50022
|
|
| local signalling |
LED indicator (green)flashing: timing in progress:
LED indicator (green)on steady: relay energised, no timing in progress: LED indicator (green)pulsing: relay energised, no timing in progress: |
|
| net weight |
0.09 kg
|
| immunity to microbreaks |
10 ms
|
|
|---|---|---|
| dielectric strength |
2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1
|
|
| standards |
IEC 60669-2-3
93/68/EEC 89/336/EEC 73/23/EEC IEC 61812-1 EN 50081-1/2 EN 50082-1/2 |
|
| product certifications |
CSA
CULus GL |
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-30…60 °C
|
|
| IP degree of protection |
IP20 (terminal block) conforming to IEC 60529
IP40 (housing) conforming to IEC 60529 IP50 (front face) conforming to IEC 60529 |
|
| vibration resistance |
0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
|
|
| relative humidity |
93 % without condensation conforming to IEC 60068-2-3
|
|
| resistance to electrostatic discharge |
6 kV in contact conforming to EN/IEC 61000-4-2 level 3
8 kV in air conforming to EN/IEC 61000-4-2 level 3 |
|
| resistance to electromagnetic fields |
10 V/m 80 MHz to 1 GHz conforming to ENV 50140/204 level 3
10 V/m 80 MHz to 1 GHz conforming to IEC 61000-4-3 level 3 |
|
| resistance to fast transients |
1 kV (capacitive connecting clip) conforming to IEC 61000-4-4 level 3
2 kV (direct) conforming to IEC 61000-4-4 level 3 |
|
| immunity to radioelectric fields |
10 V (0.15...80 MHz) conforming to ENV 50141 (IEC 61000-4-6)
|
|
| immunity to voltage dips |
30 % / 10 ms conforming to IEC 61000-4-11
60 % / 100 ms conforming to IEC 61000-4-11 95 % / 5 s conforming to IEC 61000-4-11 |
|
| disturbance radiated/conducted |
Class B conforming to EN 55022 (EN 55011 group 1)
|
| Package 1 Weight |
0.117 kg
|
|
|---|---|---|
| Package 1 Height |
0.280 dm
|
|
| Package 1 width |
0.880 dm
|
|
| Package 1 Length |
1.100 dm
|
| Warranty |
18 months
|
|---|
-
Zelio Time RE88865215
