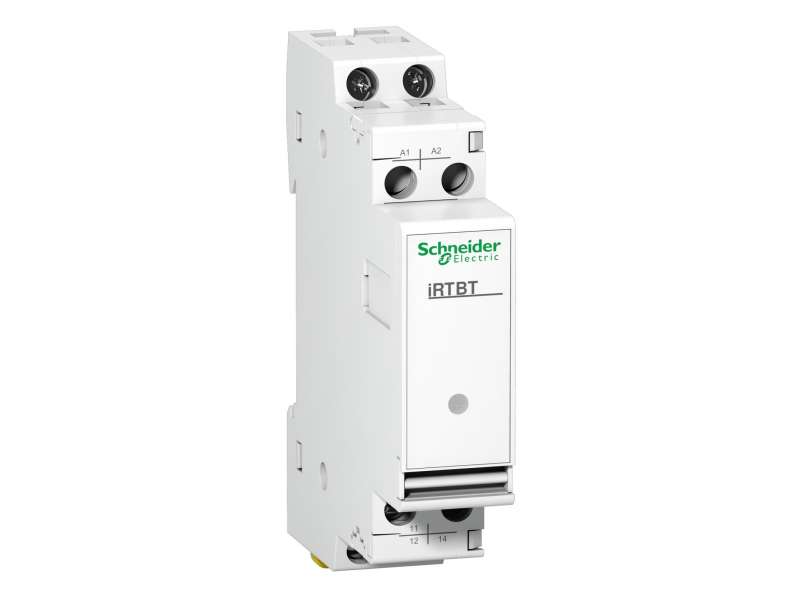

Schneider Electric Relej veoma niskog napona iRTBT - 10mA/10VDC - 5A/250VAC - 12...24 VAC/DC; A9A15416
Extra low voltage relay iRTBT - 10mA/10VDC - 5A/250VAC - 12...24 VAC/DC...
VAT-exclusive price: 6.825,00 |
VAT-inclusive price: 8.190,00 |
Extra low voltage relay iRTBT - 10mA/10VDC - 5A/250VAC - 12...24 VAC/DC
| Range | Acti9 |
|---|---|
| Product name | Acti9 iRTBT |
| Product or component type | Relay |
| Device short name | IRTBT |
| Device application | Extra low voltage interface relay |
| Function available | Actuation of LV circuits based on an extra low voltage order |
| Signal contacts composition | 1 C/O |
| [Uc] control circuit voltage |
12...24 V AC 12...24 V DC |
| [Ie] rated operational current |
5 A at 250 V AC 0.01 A at 10 V DC |
|---|---|
| [Ui] rated insulation voltage | 4000 V |
| Local signalling | LED green for power ON |
| Supply holding power | 0.22 W |
| Supply inrush power | 0.11 W |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 2 |
| Colour | White |
| Electrical durability | 100000 cycles |
| Connections - terminals | Tunnel type terminals |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 cm |
| Package 1 Width | 6.7 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 64 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 2.72 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 20 cm |
| Package 2 Weight | 818 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 108 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 7.831 kg |
| Warranty | 18 months |
|---|
-
Acti 9 iRT iRBN iRLI iRC A9A15416
