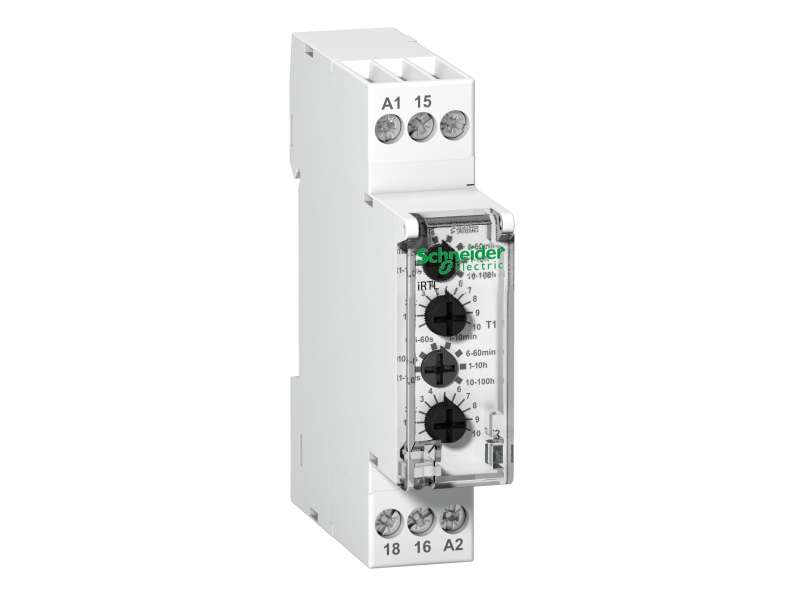

Schneider Electric Relej simetrična povorka impulsa iRTL - 1C/O - Uc 24-240 VAC/24VDC; A9E16069
blinking relay iRTL - 1C/O - Uc 24-240 VAC/24VDC...
VAT-exclusive price: 9.459,00 |
VAT-inclusive price: 11.350,80 |
blinking relay iRTL - 1C/O - Uc 24-240 VAC/24VDC
| Relay application | Time delay relay |
|---|---|
| Time delay type | Blinker |
| Range | Acti9 |
| Product name | IRT |
| Device short name | IRTL |
| Signal contacts composition | 1 C/O |
| [Ie] rated operational current |
8 A at 250 V AC 8 A at 250 V DC 0.01 A at 5 V DC |
|---|---|
| Impulse duration | > 100 ms |
| Local signalling | LED, flashing for time delay |
| Type of setting | Rotary knob: time delay configuration |
| Time delay range | 0.1...360000 s |
| Accuracy error | +/- 10 % |
| Repeat accuracy | +/- 0.5 % |
| [Uc] control circuit voltage |
24...240 V AC 50/60 Hz 24 V DC |
| [Us] rated supply voltage |
24...240 V AC at 50/60 Hz 24 V DC |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 2 |
| Height | 93 mm |
| Width | 18 mm |
| Depth | 72 mm |
| Net weight | 0.065 kg |
| Colour | White |
| Mechanical durability | 5000000 cycles |
| Electrical durability | AC-1: 100000 cycles |
| undervoltage behaviour | 100 ms |
| Connections - terminals |
Tunnel type terminals for 2 cable(s) 1.5 mm² flexible with cable end Tunnel type terminals for 2 cable(s) 1.5 mm² flexible without cable end Tunnel type terminals for 2 cable(s) 2.5 mm² rigid with cable end Tunnel type terminals for 2 cable(s) 2.5 mm² rigid without cable end |
| IP degree of protection | IP20 |
|---|---|
| immunity to microbreaks | 20 ms |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.2 cm |
| Package 1 Width | 7.4 cm |
| Package 1 Length | 10.2 cm |
| Package 1 Weight | 81 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.625 kg |
| Package 3 Height | 8 cm |
| Warranty | 18 months |
|---|
-
Acti 9 iRT iRBN iRLI iRC A9E16069
