Schneider Electric Relej asimetrično kašnjenje po uključ./isklj.- 0.05s…300h - 24…240V AC/DC - 1C/O;RE22R1AKMR
Harmony, Modular timing relay, 8 A, 1 CO, 0.05 s…300 h, dual function, 24...240 V AC/DC...
VAT-exclusive price: 9.177,00 |
VAT-inclusive price: 11.012,40 |

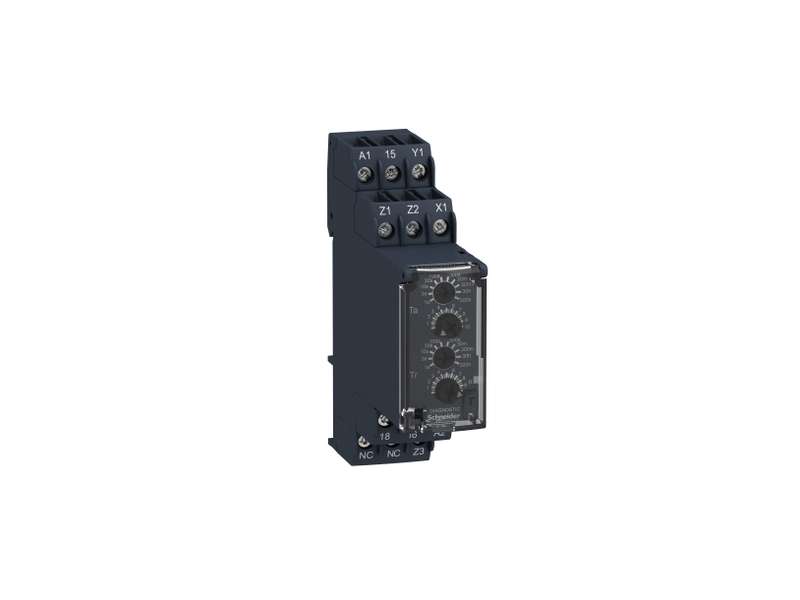

Harmony, Modular timing relay, 8 A, 1 CO, 0.05 s…300 h, dual function, 24...240 V AC/DC
| range of product | Harmony Timer Relays |
|---|---|
| product or component type | Dual function relay |
| discrete output type | Relay |
| device short name | RE22 |
| nominal output current | 8 A |
| contacts type and composition | 1 C/O timed contact, cadmium free |
|---|---|
| time delay type | Asymmetrical on-delay and off-delay |
| time delay range |
30...300 h 3...30 min 30...300 s 0.05...1 s 30...300 min 10...100 s 0.3...3 s 3...30 h 1...10 s |
| control type |
Rotary knob Diagnostic button Potentiometer external |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Release input voltage | <= 2.4 V |
| voltage range | 0.85...1.1 Us |
| supply frequency | 50...60 Hz +/- 5 % |
| connections - terminals |
Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| housing material | Self-extinguishing |
| repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| temperature drift | +/- 0.05 %/°C |
| voltage drift | +/- 0.2 %/V |
| setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Control signal pulse width |
100 ms with load in parallel 30 ms |
| insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| immunity to microbreaks | 10 ms |
| power consumption in VA | 3 VA at 240 V AC |
| power consumption in W | 1.5 W at 240 V DC |
| switching capacity in VA | 2000 VA |
| minimum switching current | 10 mA at 5 V DC |
| maximum switching current | 8 A |
| maximum switching voltage | 250 V AC |
| electrical durability |
100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1 |
| mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV for 1.2…50 µs conforming to IEC 60664-1 |
| Power on delay | 100 ms |
| creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| overvoltage category | III conforming to IEC 60664-1 |
| safety reliability data |
B10d = 180000 MTTFd = 194 years |
| mounting position | Any position |
| mounting support | 35 mm DIN rail conforming to EN/IEC 60715 |
| status LED |
LED backlight green (steady) for dial pointer indication LED yellow (steady) for output relay energised LED yellow (fast flashing) for timing in progress and output relay de-energised LED yellow (slow flashing) for timing in progress and output relay energised |
| width | 22.5 mm |
| net weight | 0.1 kg |
| dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1 |
|---|---|
| standards |
UL 508 IEC 61812-1 |
| directives |
2006/95/EC - low voltage directive 2004/108/EC - electromagnetic compatibility |
| product certifications |
EAC CSA UL RCM CCC GL CE |
| ambient air temperature for operation | -20…60 °C |
| ambient air temperature for storage | -40…70 °C |
| IP degree of protection |
IP40 housing: conforming to IEC 60529 IP50 front face: conforming to IEC 60529 IP20 terminals: conforming to IEC 60529 |
| pollution degree | 3 conforming to IEC 60664-1 |
| vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| shock resistance |
15 gn not operating for 11 ms conforming to IEC 60068-2-27 5 gn in operation for 11 ms conforming to IEC 60068-2-27 |
| relative humidity | 95 % at 25…55 °C |
| electromagnetic compatibility |
Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 107.0 g |
| Package 1 Height | 2.6 cm |
| Package 1 width | 8.2 cm |
| Package 1 Length | 9.5 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Weight | 4.691 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 640 |
| Package 3 Weight | 86.18 kg |
| Package 3 Height | 50.0 cm |
| Package 3 width | 80.0 cm |
| Package 3 Length | 60.0 cm |
