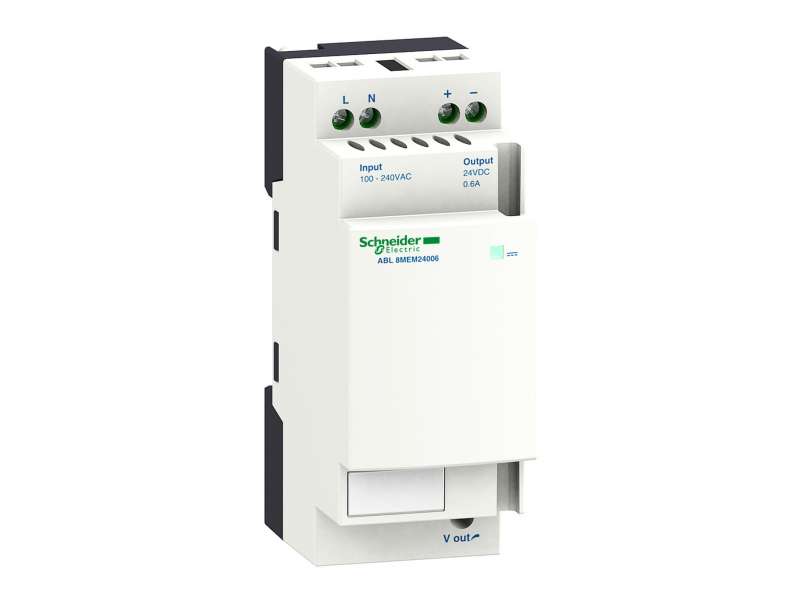

Schneider Electric Regulisano napajanje SMPS - monofazno ili dvofazno - 100..240 V AC -24 V - 0.6 A ; ABL8MEM24006
Regulated Switch Power Supply, 1 or 2-phase, 100..240V AC, 24V, 0.6 A...
VAT-exclusive price: 5.566,70 |
VAT-inclusive price: 6.680,04 |
Regulated Switch Power Supply, 1 or 2-phase, 100..240V AC, 24V, 0.6 A
| range of product |
Modicon Power Supply
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Regulated switch mode
|
|
| Nominal input voltage |
100...240 V AC phase to phase, terminal(s): L1-L2
100...240 V AC single phase, terminal(s): N-L1 120...250 V DC |
|
| input voltage limits |
85...264 V AC
|
|
| rated power in W |
15 W
|
|
| output voltage |
24 V DC
|
|
| power supply output current |
0.6 A
|
| input protection type |
Integrated fuse (not interchangeable)
|
|
|---|---|---|
| inrush current |
20 A
|
|
| power factor |
0.5 at 24 V DC
|
|
| efficiency |
80 %
|
|
| Output voltage adjustment |
22.2...28.8 V adjustable
|
|
| power dissipation in W |
3.8 W
|
|
| current consumption |
0.25 A 240 V AC
0.4 A 100 V AC |
|
| residual ripple |
250 mV
|
|
| output protection type |
Thermal
Against short-circuits |
|
| connections - terminals |
Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection
Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for output connection |
|
| status LED |
1 LED (green)output voltage:
|
|
| depth |
59 mm
|
|
| height |
100 mm
|
|
| width |
36 mm
|
|
| net weight |
0.1 kg
|
|
| output coupling |
Parallel
Series |
|
| marking |
CE
|
|
| mounting support |
35 x 7.5 mm symmetrical DIN rail
panel 2 screws, diameter : 4 mm 35 x 15 mm symmetrical DIN rail |
|
| operating position |
Vertical
|
| standards |
UL 508
CSA C22.2 No 60950-1 |
|
|---|---|---|
| product certifications |
TUV 60950-1
EAC KC RCM CCSAus CSA 22-2 No 950 CULus 508 |
|
| environmental characteristic |
EMC conforming to EN 55022 class B
EMC conforming to EN 61000-6-3 EMC conforming to EN/IEC 61000-6-2 EMC conforming to EN/IEC 61204-3 Safety conforming to EN/IEC 60950-1 Safety conforming to SELV |
|
| operating altitude |
2000 m
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| ambient air temperature for operation |
-25…55 °C (without)
55…70 °C (with derating factor) |
|
| ambient air temperature for storage |
-40…70 °C
|
|
| relative humidity |
0…90 % during operation
0…95 % in storage |
|
| dielectric strength |
3000 V between input and output
|
| Package 1 Weight |
0.130 kg
|
|
|---|---|---|
| Package 1 Height |
0.500 dm
|
|
| Package 1 width |
0.730 dm
|
|
| Package 1 Length |
1.000 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| PVC free |
Yes
|
| Warranty |
18 months
|
|---|
-
Power supplies for industrial use rail mounting ABL8MEM24006
