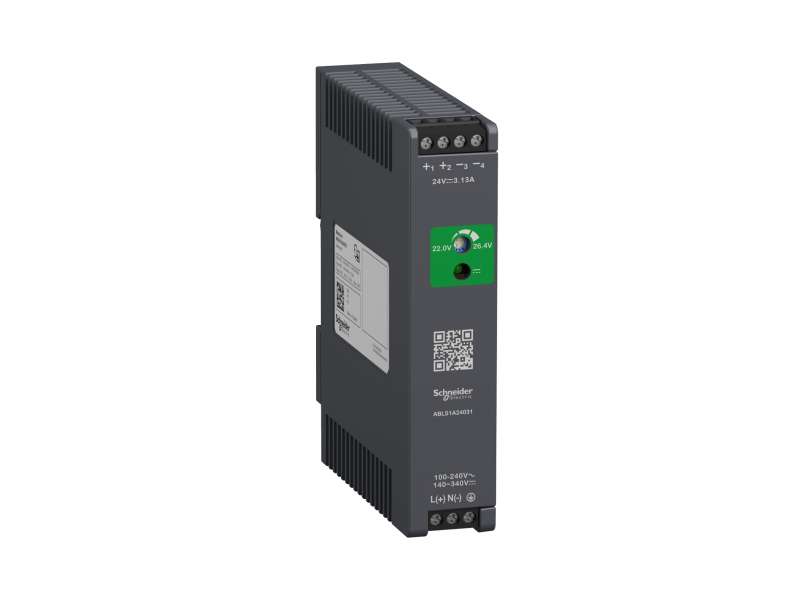

Schneider Electric Regulisano napajanje, 100-240V AC, 24V 3.1 A, monofazno, optimizovano;ABLS1A24031
Regulated Power Supply, 100-240V AC, 24V 3.1 A, single phase, Optimized...
VAT-exclusive price: 11.235,00 |
VAT-inclusive price: 13.482,00 |
Regulated Power Supply, 100-240V AC, 24V 3.1 A, single phase, Optimized
| range of product |
Modicon Power Supply
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Regulated switch mode
|
|
| variant option |
Optimized
|
|
| enclosure material |
Plastic
|
|
| Nominal input voltage |
100...240 V AC single phase
100...240 V AC 2 phases 140...340 V DC |
|
| input voltage limits |
85...264 V AC
120...375 V DC |
|
| rated power in W |
75 W
|
|
| output voltage |
24 V DC
|
|
| power supply output current |
3.13 A
|
| Nominal network frequency |
50…60 Hz
|
|
|---|---|---|
| Network system compatibility |
TN
TT IT |
|
| maximum leakage current |
1 mA 240 V AC
|
|
| input protection type |
Integrated fuse (not interchangeable) 5 A
External protection (recommended) 20 A Curve C External protection (recommended) 13 A Curve B External protection (recommended) 10 A Curve C |
|
| inrush current |
40.0 A at 115 V
80.0 A at 230 V |
|
| power factor |
0.55 at 115 V AC
0.45 at 230 V AC |
|
| efficiency |
88 % at 230 V AC
|
|
| Output voltage adjustment |
21.6...26.4 V
|
|
| power dissipation in W |
15 W
|
|
| current consumption |
< 1.8 A 115 V AC
< 1 A 230 V AC < 0.8 A 140 V DC |
|
| Turn-on time |
< 1.2 s
|
|
| holding time |
> 20 ms 115 V AC
> 40 ms 230 V AC |
|
| Startup with capacitive loads |
5000 µF
|
|
| residual ripple |
< 120 mV
|
|
| Expected capacitor life time |
10 year(s)
|
|
| meantime between failure [MTBF] |
700000 h at 25 °C, full load conforming to SR 332
|
|
| output protection type |
Against overload and short-circuits, protection technology: automatic reset
Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
|
| connections - terminals |
Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) for output
Screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) for input |
|
| line and load regulation |
< 0.5 %line
< 1 %load |
|
| status LED |
1 LED (green)output voltage
|
|
| depth |
102 mm
|
|
| height |
123.6 mm
|
|
| width |
27 mm
|
|
| net weight |
0.22 kg
|
|
| output coupling |
Parallel
Serial |
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Double-profile DIN rail |
|
| supply |
SELV conforming to EN/IEC 60950-1
SELV conforming to EN/IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| standards |
EN 62368-1
EN/IEC 61010-1 EN 61010-2-201 EN/IEC 61204-3 EN 61000-6-1 EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 EN 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 EN/IEC 62368-1 |
|
|---|---|---|
| product certifications |
CE
CUL listed CUL recognized RCM CB Scheme EAC KC NEC: class 2 |
|
| environmental characteristic |
3M4 conforming to IEC 60721-3-3
|
|
| operating altitude |
< 5000 m
|
|
| shock resistance |
100 m/s² for 11 ms
|
|
| IP degree of protection |
-
Phaseo ABL7 ABL8 ABLS1A24031
