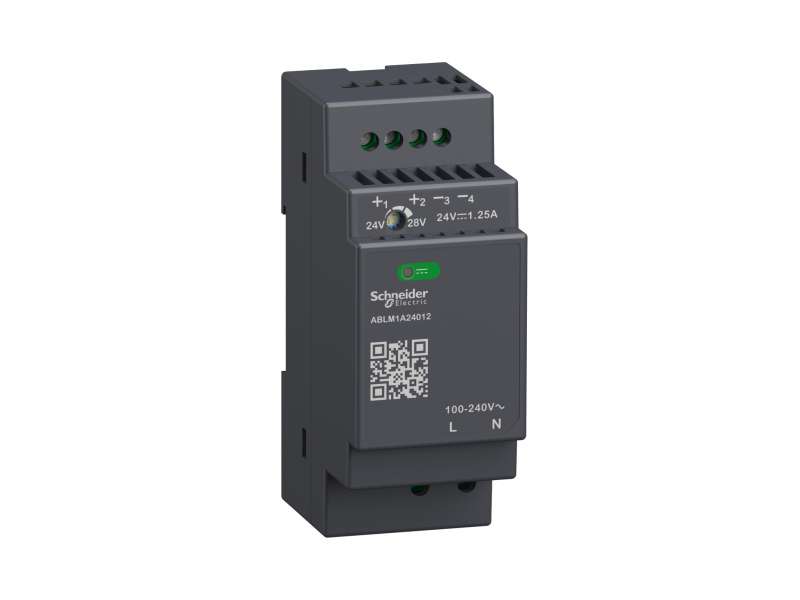

Schneider Electric Regulisano napajanje, 100-240V AC, 24V 1.2 A, monofazno, modularno;ABLM1A24012
Regulated Power Supply, 100-240V AC, 24V 1.2 A, single phase, Modular...
VAT-exclusive price: 10.993,00 |
VAT-inclusive price: 13.191,60 |
Regulated Power Supply, 100-240V AC, 24V 1.2 A, single phase, Modular
| range of product |
Modicon Power Supply
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Regulated switch mode
|
|
| variant option |
Modular
|
|
| enclosure material |
Plastic
|
|
| Nominal input voltage |
100...240 V AC single phase
100...240 V AC 2 phases |
|
| input voltage limits |
90...264 V AC
|
|
| rated power in W |
30 W
|
|
| output voltage |
24 V DC
|
|
| power supply output current |
1.25 A
|
| Nominal network frequency |
50…60 Hz
|
|
|---|---|---|
| Network system compatibility |
TN
TT IT |
|
| maximum leakage current |
0.25 mA 240 V AC
|
|
| input protection type |
Integrated fuse (not interchangeable) 3.15 A
External protection (recommended) 20 A Curve B External protection (recommended) 20 A Curve C External protection (recommended) 4 A Curve B External protection (recommended) 4 A Curve C |
|
| inrush current |
25 A at 115 V
50 A at 230 V |
|
| power factor |
0.48 at 115 V AC
0.38 at 230 V AC |
|
| efficiency |
87 % at 115 V AC
87 % at 230 V AC |
|
| Output voltage adjustment |
24...28 V
|
|
| power dissipation in W |
5 W
|
|
| current consumption |
< 0.8 A 115 V AC
< 0.6 A 230 V AC |
|
| Turn-on time |
< 2 s
|
|
| holding time |
> 20 ms 115 V AC
> 60 ms 230 V AC |
|
| Startup with capacitive loads |
3000 µF
|
|
| residual ripple |
< 100 mV
|
|
| Expected capacitor life time |
10 year(s)
|
|
| meantime between failure [MTBF] |
2500000 h at 25 °C, full load
1000000 h at 55 °C, 80 % load |
|
| output protection type |
Against overload and short-circuits, protection technology: automatic reset
Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
|
| connections - terminals |
Screw connection: 0.5...1.5 mm², (AWG 20...AWG 16) without wire end ferrule for input/output
Screw connection: 0.5...1 mm², (AWG 20...AWG 18) with wire end ferrule for input/output |
|
| line and load regulation |
< 0.5 %line
< 1 %load |
|
| status LED |
1 LED (green)output voltage
|
|
| depth |
55.6 mm
|
|
| height |
91 mm
|
|
| width |
36 mm
|
|
| net weight |
0.170 kg
|
|
| output coupling |
Serial
Parallel |
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 Double-profile DIN rail panel mounting |
|
| supply |
SELV conforming to EN/IEC 60950-1
SELV conforming to EN/IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| standards |
EN 62368-1
EN/IEC 61010-1 EN 61010-2-201 EN/IEC 61204-3 EN 61000-6-1 EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 EN 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 EN/IEC 62368-1 |
|
|---|---|---|
| product certifications |
CE
CUL listed CUL recognized RCM CB Scheme EAC KC NEC: class 2 |
|
| operating altitude |
< 2000 m overvoltage category III
2000 m...5000 m overvoltage category II |
|
| shock resistance |
100 m/s² for 11 ms
|
|
| IP degree of protection |
IP20
|
|
-
Phaseo ABL7 ABL8 ABLM1A24012
