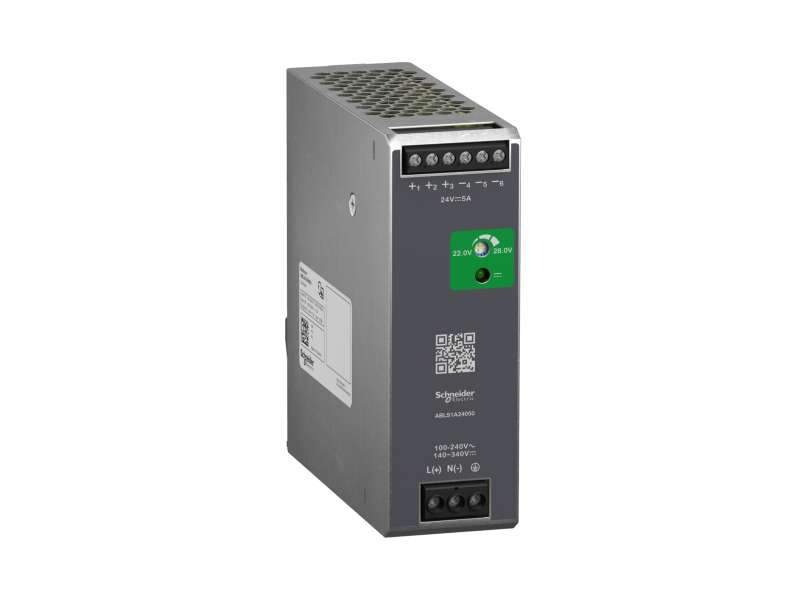

Modicon Power Supply

Power supply

Regulated switch mode

Optimized

Aluminium

100...240 V AC single phase
100...240 V AC 2 phases
140...340 V DC

85...264 V AC
120...375 V DC

120 W

24 V DC

5 A

50…60 Hz

TN
TT
IT

1 mA 240 V AC

Integrated fuse (not interchangeable) 4 A
External protection (recommended) 20 A Curve C
External protection (recommended) 13 A Curve C

30.0 A at 115 V
60.0 A at 230 V

0.55 at 115 V AC
0.45 at 230 V AC

85 % at 115 V AC
88 % at 230 V AC

22...28 V

25 W

< 2.5 A 115 V AC
< 1.4 A 230 V AC
< 1.3 A 140 V DC

< 1 s

> 20 ms 115 V AC
> 40 ms 230 V AC

8000 µF

< 120 mV

10 year(s)

700000 h at 25 °C, full load conforming to SR 332

Against overload and short-circuits, protection technology: automatic reset
Against over temperature, protection technology: manual reset
Against overvoltage, protection technology: manual reset

Screw connection: 0.5...4 mm², (AWG 20...AWG 12) without wire end ferrule for output
Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) with wire end ferrule for output
Screw connection: 0.75...4 mm², (AWG 18...AWG 12) without wire end ferrule for input
Screw connection: 0.75...4 mm², (AWG 18...AWG 12) with wire end ferrule for input

< 0.5 %line
< 1 %load

1 LED (green)output voltage

117.6 mm

123.6 mm

40 mm

0.55 kg

Parallel
Serial

Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715
Double-profile DIN rail

SELV conforming to EN/IEC 60950-1
SELV conforming to EN/IEC 60204-1
SELV conforming to IEC 60364-4-41

EN 62368-1
EN/IEC 61204-3
EN 61000-6-1
EN 61000-6-2
EN 61000-6-3
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
UL 62368-1
CSA C22.2 No 62368-1
UL 508
CSA C22.2 No 107.1
EN/IEC 62368-1

CE
CUL listed
CUL recognized
RCM
CB Scheme
EAC
KC

3M4 conforming to IEC 60721-3-3

< 5000 m

100 m/s² for 11 ms

IP20

-20…-10 °C (with current derating of 2 % per °C)
40…70 °C (with current derating of 1.8 % per °C)
50…70 °C (with current derating of 2.5 % per °C)

-40…85 °C

0…95 % without condensation

II

ES1

Class I

2

3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6
10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6

Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
Immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2
Immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3
Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3
Immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3
Immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4
Surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5
Surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5
Immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8
Immunity to voltage dips conforming to EN/IEC 61000-4-11
Disturbing field emission conforming to EN 55016-2-3
Limits for harmonic current emissions conforming to EN 61000-3-2
Conducted disturbance emission conforming to EN 55016-1-2
Conducted disturbance emission conforming to EN 55016-2-1

Conducted emissions conforming to EN 61000-6-3
Radiated emissions conforming to EN 61000-6-4

3000 V AC input to output

Green Premium product

REACh Declaration

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

Yes

China RoHS declaration

Product Environmental Profile

End of Life Information

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
