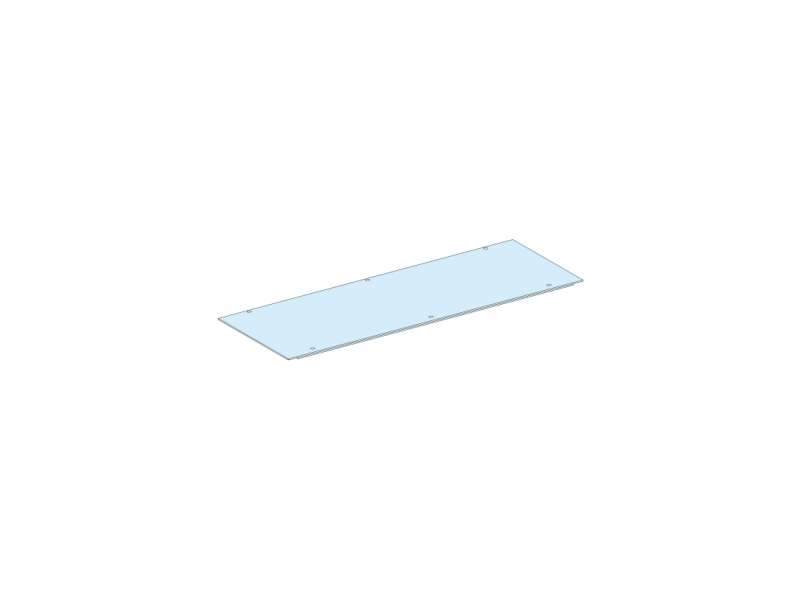

Schneider Electric Rear panel, PrismaSeT P, for enclosure W 300mm, IP55; LVS08743
Rear panel, PrismaSeT P, for enclosure W 300mm, IP55...
VAT-exclusive price: 16.636,00 |
VAT-inclusive price: 19.963,20 |
Rear panel, PrismaSeT P, for enclosure W 300mm, IP55
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Rear panel |
| Range compatibility | PrismaSeT (PrismaSeT P) enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type | Metal enclosure |
| installation description | Cubicle duct - width 300 mm |
| Kit composition | Side panel |
| Standards |
IEC 61439-1 for enclosure IEC 61439-2 for enclosure |
| Product certifications | ASTA |
| Material | Treated sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Textured Matt |
| Colour | White (RAL 9003) |
| Width | 300 mm |
| Height | 2000 mm |
| Net weight | 9.64 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP55 for enclosure |
|---|---|
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 31.7 cm |
| Package 1 Length | 206.0 cm |
| Package 1 Weight | 9.96 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 94 cm |
| Package 2 Width | 120 cm |
| Package 2 Length | 206 cm |
| Package 2 Weight | 624 kg |
| Package 3 Height | 94 cm |
