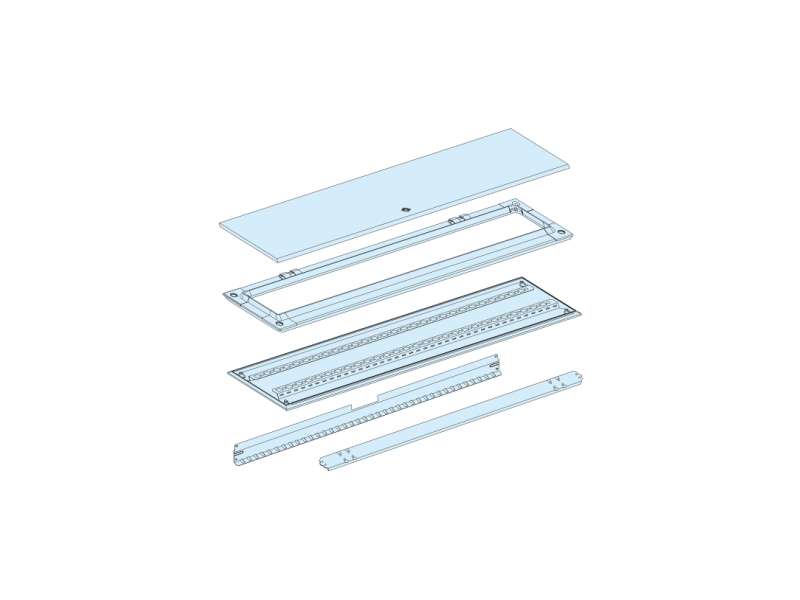

Schneider Electric Rear panel & door, PrismaSeT G, for extension duct, 15M, W300mm, H850mm, IP55; LVS08344
Rear panel & door, PrismaSeT G, for extension duct, 15M, W300mm, H850mm, IP55...
VAT-exclusive price: 28.314,00 |
VAT-inclusive price: 33.976,80 |
Rear panel & door, PrismaSeT G, for extension duct, 15M, W300mm, H850mm, IP55
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type |
Rear panel Door |
| Device application | Low voltage electrical distribution |
| Enclosure type | Functional enclosure delivered in kit form |
| Provided equipment | 1 x door for enclosure |
| Additional information | Can be combined side by side and one on top of another |
| type of front plate | Without |
| Number of vertical modules [50 mm] | 15 |
| Number of 18 mm modules per row | 10 |
| [Ui] rated insulation voltage | 1000 V |
|---|---|
| [In] rated current | 630 A at 40 °C conforming to IEC 61439-2 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Smooth Matt |
| Colour | White (RAL 9001) |
| Width | 300 mm |
| Height | 850 mm |
| Depth | 260 mm |
| Product weight | 15.04 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP55 with door |
|---|---|
| IK degree of protection | IK10 with door conforming to EN/IEC 62262 |
| Mechanical robustness | Seismic tests - 2.5G conforming to IEC 60068-2-57 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10 cm |
| Package 1 Width | 33.5 cm |
| Package 1 Length | 84 cm |
| Package 1 Weight | 14.751 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 35 cm |
| Package 2 Width | 80 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 71 kg |
