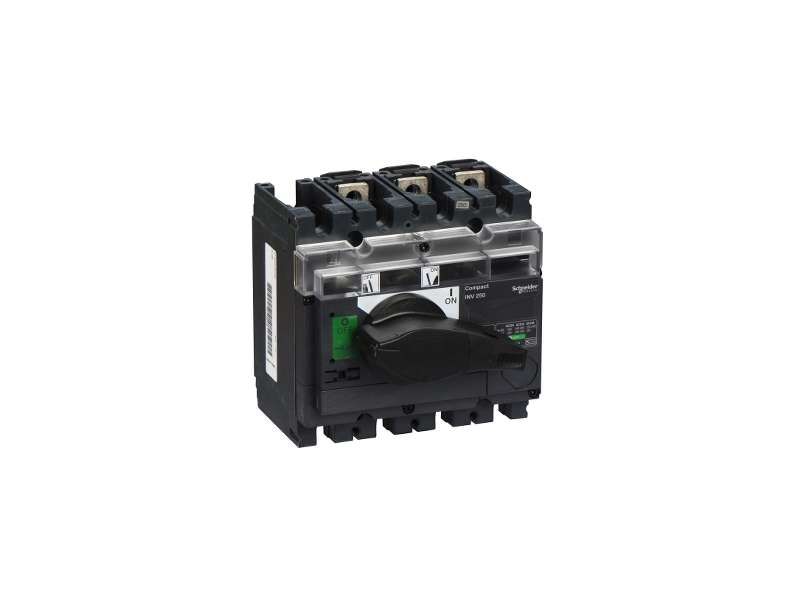

Schneider Electric Rastavljač sa vidljivim rastavljanjem Compact INV250 - 250 A - 3P;31166
switch disconnector, Compact INV250, visible break, 250 A, standard version with black rotary handle, 3 poles...
VAT-exclusive price: 23.241,00 |
VAT-inclusive price: 27.889,20 |
switch disconnector, Compact INV250, visible break, 250 A, standard version with black rotary handle, 3 poles
| range | ComPact |
|---|---|
| product name | Compact INV |
| product or component type | Switch disconnector |
| poles description | 3P |
| network type |
DC AC |
| network frequency | 50/60 Hz |
| handle colour | Black |
| [Ie] rated operational current |
AC-23A: 200 A AC 50/60 Hz 500/525 V AC-23A: 200 A AC 50/60 Hz 660/690 V DC-23B: 200 A DC 125 V 2 poles in series AC-21A: 250 A AC 50/60 Hz 220/240 V AC-21A: 250 A AC 50/60 Hz 380/415 V AC-21A: 250 A AC 50/60 Hz 440/480 V AC-21A: 250 A AC 50/60 Hz 480 V NEMA AC-21A: 250 A AC 50/60 Hz 500/525 V AC-21A: 250 A AC 50/60 Hz 660/690 V AC-22A: 250 A AC 50/60 Hz 220/240 V AC-22A: 250 A AC 50/60 Hz 380/415 V AC-22A: 250 A AC 50/60 Hz 440/480 V AC-22A: 250 A AC 50/60 Hz 480 V NEMA AC-22A: 250 A AC 50/60 Hz 500/525 V AC-22A: 250 A AC 50/60 Hz 660/690 V AC-23A: 250 A AC 50/60 Hz 220/240 V AC-23A: 250 A AC 50/60 Hz 380/415 V AC-23A: 250 A AC 50/60 Hz 440/480 V AC-23A: 250 A AC 50/60 Hz 480 V NEMA DC-21A: 250 A DC 125 V 2 poles in series DC-22A: 250 A DC 125 V 2 poles in series |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 250 A at 60 °C |
| [Icm] rated short-circuit making capacity |
30 kA switch-disconnector alone 690 V AC at 50/60 Hz 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage |
250 V DC 690 V AC 50/60 Hz |
| suitability for isolation | Yes |
| contact position indicator | Yes |
| visible break | Yes |
| pollution degree | 3 |
| control type | Rotary handle |
|---|---|
| mounting mode | Fixed |
| mounting support |
Plate Rail |
| upside connection | Front |
| downside connection | Front |
| maximum power |
AC-23: 132 kW at 500/525 V AC 50/60 Hz AC-23: 160 kW at 660/690 V AC 50/60 Hz AC-23: 132 kW at 380/415 V AC 50/60 Hz AC-23: 150 kW at 440 V AC 50/60 Hz AC-23: 150 kW at 480 V AC 50/60 Hz (NEMA) AC-23: 75 kW at 220/240 V AC 50/60 Hz AC-23: 75 kW at 230 V AC 50/60 Hz (NEMA) |
| rated duty | Uninterrupted |
| [Icw] rated short-time withstand current |
1.8 kA during 30 s conforming to IEC 60947-3 2.2 kA during 20 s conforming to IEC 60947-3 4.9 kA during 3 s conforming to IEC 60947-3 8.5 kA during 1 s conforming to IEC 60947-3 |
| mechanical durability | 15000 cycles |
| electrical durability |
AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-22A: 1500 cycles 690 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 690 V AC 50/60 Hz DC-22A: 1500 cycles 125 V DC DC-23A: 1500 cycles 125 V DC |
| connection pitch | 45 mm |
| height | 136 mm |
| width | 140 mm |
| depth | 96 mm |
| net weight | 2 kg |
| standards |
IEC 60947-1 IEC 60947-3 |
|---|---|
| product certifications |
KEMA-KEUR CCC |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.23 kg |
| Package 1 Height | 17 cm |
| Package 1 width | 14 cm |
| Package 1 Length | 16.5 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 9 |
| Package 2 Weight | 20.953 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 40 cm |
| Package 2 Length | 60 cm |
| Warranty | 18 months |
|---|
