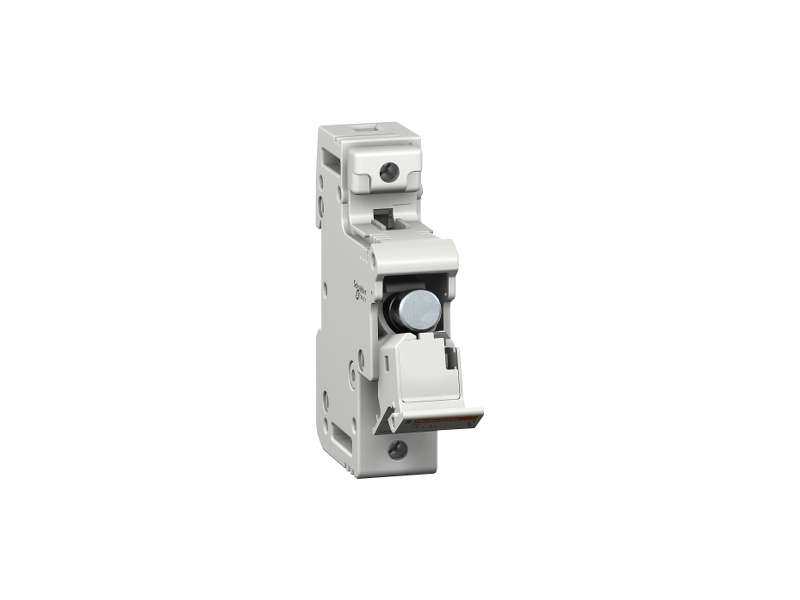

Schneider Electric Rastavljač sa osiguračima SBI - 1P - 125 A - za osigurače 22 x 58 mm;MGN15713
fuse-disconnector SBI - 1 pole - 125 A - for fuse 22 x 58 mm...
VAT-exclusive price: 1.877,00 |
VAT-inclusive price: 2.252,40 |
fuse-disconnector SBI - 1 pole - 125 A - for fuse 22 x 58 mm
| range | Acti9 |
|---|---|
| product name | Acti9 SBI |
| product or component type | Fuse-disconnector |
| device short name | SBI |
| poles description | 1P |
| [In] rated current |
32 A 40 A 50 A 63 A 80 A 100 A 125 A |
|---|---|
| fuse curve |
AM GG |
| fuse size | 22 x 58 mm |
| [Ue] rated operational voltage | 690 V AC |
| mounting support | 35 mm symmetrical DIN rail |
| locking options description | Non padlockable |
| 9 mm pitches | 4 |
| height | 126.5 mm |
| width | 35 mm |
| depth | 70 mm |
| connections - terminals |
Screw clamp terminals1 cable(s) 2.5…25 mm² rigid Screw clamp terminals1 cable(s) 2.5…25 mm² flexible |
| tightening torque | 3.5 N.m |
| standards | IEC EN 60947-3 |
|---|---|
| pollution degree | 3 |
| ambient air temperature for operation | -20…60 °C |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 12.8 cm |
| Number of Units in Package 1 | 1 |
| Package 3 Width | 12.8 cm |
| Package 3 Weight | 1.162 kg |
| Package 2 Width | 30.0 cm |
| Package 2 Height | 30.0 cm |
| Package 2 Weight | 11.02 kg |
| Number of Units in Package 3 | 6 |
| Unit Type of Package 3 | BB1 |
| Package 3 Height | 7.8 cm |
| Package 3 Length | 21.3 cm |
| Package 1 Width | 7.7 cm |
| Package 1 Height | 3.5 cm |
| Package 1 Weight | 186.0 g |
| Number of Units in Package 2 | 54 |
| Unit Type of Package 2 | S03 |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| range | Acti9 |
|---|---|
| product name | Acti9 SBI |
| product or component type | Fuse-disconnector |
| device short name | SBI |
| poles description | 1P |
| [In] rated current |
32 A 40 A 50 A 63 A 80 A 100 A 125 A |
|---|---|
| fuse curve |
AM GG |
| fuse size | 22 x 58 mm |
| [Ue] rated operational voltage | 690 V AC |
| mounting support | 35 mm symmetrical DIN rail |
| locking options description | Non padlockable |
| 9 mm pitches | 4 |
| height | 126.5 mm |
| width | 35 mm |
| depth | 70 mm |
| connections - terminals |
Screw clamp terminals1 cable(s) 2.5…25 mm² rigid Screw clamp terminals1 cable(s) 2.5…25 mm² flexible |
| tightening torque | 3.5 N.m |
| standards | IEC EN 60947-3 |
|---|---|
| pollution degree | 3 |
| ambient air temperature for operation | -20…60 °C |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 12.8 cm |
| Number of Units in Package 1 | 1 |
| Package 3 Width | 12.8 cm |
| Package 3 Weight | 1.162 kg |
| Package 2 Width | 30.0 cm |
| Package 2 Height | 30.0 cm |
| Package 2 Weight | 11.02 kg |
| Number of Units in Package 3 | 6 |
| Unit Type of Package 3 | BB1 |
| Package 3 Height | 7.8 cm |
| Package 3 Length | 21.3 cm |
| Package 1 Width | 7.7 cm |
| Package 1 Height | 3.5 cm |
| Package 1 Weight | 186.0 g |
| Number of Units in Package 2 | 54 |
| Unit Type of Package 2 | S03 |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
