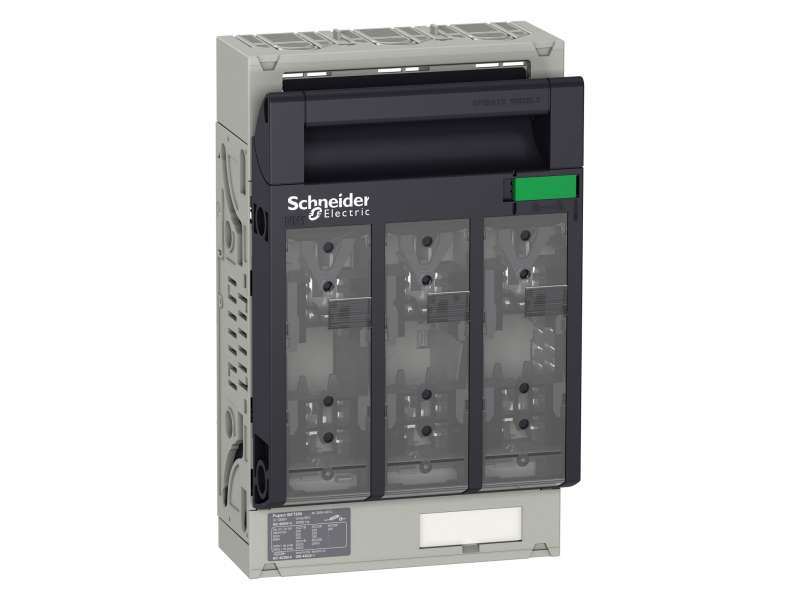

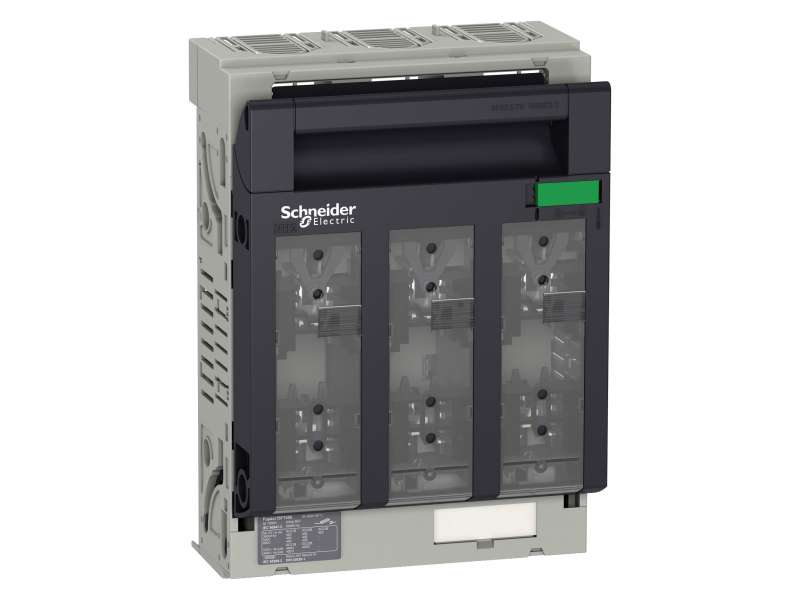

Schneider Electric Rastavljač sa osiguračima, Fupact ISFT400, 400 A, DIN NH02, tropolni, montaža na ploču ; LV480806
fuse switch disconnector, Fupact ISFT400, 400 A, DIN NH02, 3 poles, backplate mounting...
VAT-exclusive price: 23.422,00 |
VAT-inclusive price: 28.106,40 |
fuse switch disconnector, Fupact ISFT400, 400 A, DIN NH02, 3 poles, backplate mounting
| range of product |
ISFT400
|
|
|---|---|---|
| range |
FuPact
|
|
| product name |
Fupact ISFT
|
|
| device short name |
ISFT400
|
|
| product or component type |
Fuse-switch disconnector
|
|
| device application |
Equipment protection, monitoring and control
Distribution |
| poles description |
3P
|
|
|---|---|---|
| protected poles description |
3f
|
|
| fuse type |
DIN
|
|
| fuse size |
NH2
|
|
| network type |
AC
|
|
| network frequency |
50/60 Hz
|
|
| control type |
Fuse carriers handle
|
|
| [Ith] conventional free air thermal current |
400 A ( 40 °C ) power dissipation per fuse: 34 W horizontal
400 A ( 40 °C ) power dissipation per fuse: 34 W vertical 380 A ( 45 °C ) power dissipation per fuse: 33.3 W horizontal 380 A ( 45 °C ) power dissipation per fuse: 33.3 W vertical 360 A ( 50 °C ) power dissipation per fuse: 26.3 W horizontal 360 A ( 50 °C ) power dissipation per fuse: 26.3 W vertical 340 A ( 55 °C ) power dissipation per fuse: 25.6 W horizontal 340 A ( 55 °C ) power dissipation per fuse: 25.6 W vertical 320 A ( 60 °C ) power dissipation per fuse: 24.9 W horizontal 320 A ( 60 °C ) power dissipation per fuse: 24.9 W vertical 300 A ( 65 °C ) power dissipation per fuse: 24.2 W horizontal 300 A ( 65 °C ) power dissipation per fuse: 24.2 W vertical 280 A ( 70 °C ) power dissipation per fuse: 23.5 W horizontal 280 A ( 70 °C ) power dissipation per fuse: 23.5 W vertical |
|
| [Ithe] conventional enclosed thermal current |
400 A at 40 °C, Power dissipation per fuse: 34 W
|
|
| rated duty |
Uninterrupted
|
|
| [Ui] rated insulation voltage |
1000 V AC 50/60 Hz
1000 V DC |
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
| [Ue] rated operational voltage |
800 V AC 50/60 Hz AC-20
800 V DC DC-20 |
|
| [Ie] rated operational current |
AC-21B: 400 A AC 50/60 Hz 220/240 V
AC-21B: 400 A AC 50/60 Hz 380/415 V AC-21B: 400 A AC 50/60 Hz 440/480 V AC-21B: 400 A AC 50/60 Hz 500 V AC-21B: 400 A AC 50/60 Hz 660/690 V AC-22B: 400 A AC 50/60 Hz 220/240 V AC-22B: 400 A AC 50/60 Hz 380/415 V AC-22B: 400 A AC 50/60 Hz 440/480 V AC-22B: 400 A AC 50/60 Hz 500 V AC-22B: 400 A AC 50/60 Hz 660/690 V AC-23B: 400 A AC 50/60 Hz 220/240 V AC-23B: 400 A AC 50/60 Hz 380/415 V DC-21B: 400 A DC 220 V 3 poles in series DC-21B: 400 A DC 440 V 3 poles in series DC-22B: 400 A DC 220 V 3 poles in series |
|
| [Im] rated making and breaking capacity |
Icn 80000 A at 415 V
Icn 80000 A at 500 V Icn 80000 A at 690 V Icm 22100 A at 415 V Icm 22100 A at 500 V Icm 22100 A at 690 V In 400 A at 415 V In 400 A at 500 V In 400 A at 690 V |
|
| suitability for isolation |
Yes
|
|
| visible break |
Yes
|
|
| contact operation |
Single-break
|
|
| mechanical durability |
1000 cycles
|
|
| electrical durability |
AC-21B: 200 cycles 690 V AC 50/60 Hz
AC-23B: 200 cycles 415 V AC 50/60 Hz AC-22B: 200 cycles 690 V AC 50/60 Hz |
|
| electrical shock protection class |
Class II front face
|
|
| colour code |
RAL 7016 handle
RAL 7035 chassis |
|
| provision for padlocking |
Lead seal
|
|
| mounting position |
Horizontal
Vertical |
|
| mounting mode |
Fixed
|
|
| mounting support |
Mounting plate
|
|
| mounting location |
Side by side
|
|
| design |
Horizontal design
|
|
| connections terminals |
Screw connection
|
|
| connections - terminals |
Screw connection upstream M10 400 A
Screw connection downstream M10 400 A |
|
| tightening torque |
20 N.m for terminal
|
| height |
306 mm
|
|
|---|---|---|
| width |
210 mm
|
|
| depth |
130 mm
|
|
| standards |
EN/IEC 60947-3
IEC 60269-2 EN/IEC 60947-1 |
|
| product certifications |
EAC
CE CCC |
|
| IP degree of protection |
IP3x conforming to IEC 60529
|
|
| IK degree of protection |
IK07 conforming to EN 50102
|
|
| pollution degree |
3 conforming to IEC 60947
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-50…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
3.4 g
|
|
| Package 1 Height |
17.5 cm
|
|
| Package 1 width |
23 cm
|
|
| Package 1 Length |
35 cm
|
|
| Unit Type of Package 2 |
S04
|
|
| Number of Units in Package 2 |
3
|
|
| Package 2 Weight |
11.018 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
40 cm
|
|
| Package 2 Length |
60 cm
|
|
| Unit Type of Package 3 |
P12
|
|
| Number of Units in Package 3 |
36
|
|
| Package 3 Weight |
122.4 kg
|
|
| Package 3 Height |
105 cm
|
|
| Package 3 width |
80 cm
|
|
| Package 3 Length |
120 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
