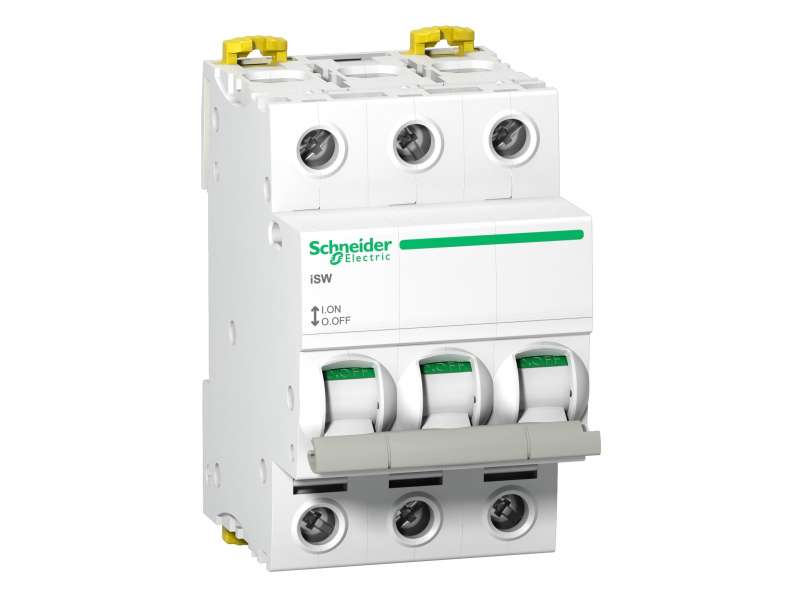

Name: Schneider Electric Rastavljač iSW - 3P - 63 A - 415 V; A9S65363
Brand: Schneider Electric
SKU: A9S65363
Price: 4064.40 RSD
Availability: OutOfStock

Schneider Electric Rastavljač iSW - 3P - 63 A - 415 V; A9S65363

switch disconnector iSW - 3P - 63 A - 415 V; A9S65363...

Brand: Schneider Electric
Product Code: A9S65363
Availability: Check availability

VAT-exclusive price: 3.387,00

VAT-inclusive price: 4.064,40

Qnt:

Description
Specification

switch disconnector iSW - 3P - 63 A - 415 V; A9S65363

Main
Range	Acti9
Product name	Acti9 iSW
Product or component type	Switch disconnector
Device short name	iSW
Device application	Isolation Control
Poles description	3P
utilisation category	AC-22A
suitability for isolation	Yes

Complementary
[Ie] rated operational current	63 A at 415 V AC 50/60 Hz
[Ue] rated operational voltage	415 V AC 50/60 Hz
[Icm] rated short-circuit making capacity	4.2 kA switch-disconnector alone
[Icw] rated short-time withstand current	1260 A
[Ui] rated insulation voltage	500 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	6 kV
Control type	Toggle
local signalling	ON/OFF indication
Contact position indicator	Yes
Mounting mode	Fixed
Mounting support	DIN rail
comb busbar and distribution block compatibility	Top or bottom: YES
9 mm pitches	6
Height	85 mm
Width	54 mm
Depth	73 mm
Colour	White
Mechanical durability	20000 cycles
electrical durability	15000 cycles
connections - terminals	Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule
Wire stripping length	9 mm
Tightening torque	3.5 N.m
