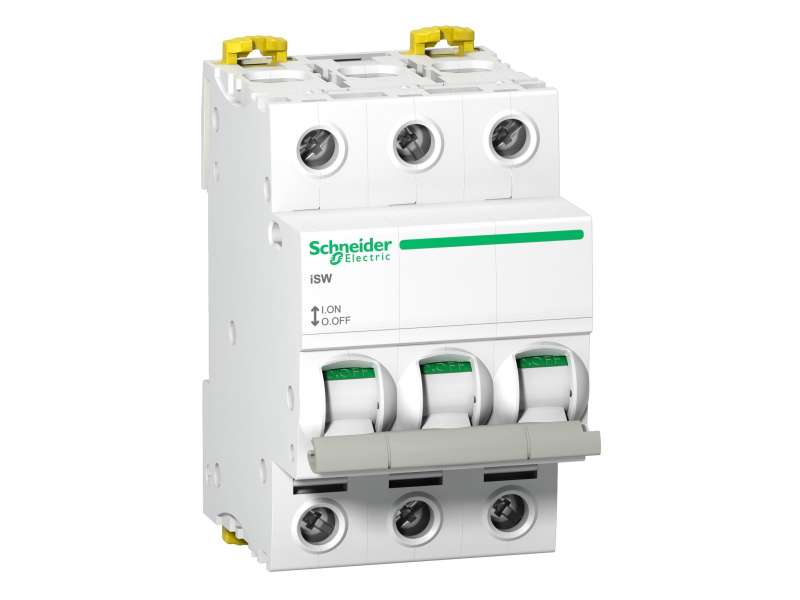

Schneider Electric Rastavljač iSW - 3P - 40 A - 415 V ; A9S65340
switch disconnector iSW - 3P - 40 A - 415 V...
VAT-exclusive price: 2.258,00 |
VAT-inclusive price: 2.709,60 |
switch disconnector iSW - 3P - 40 A - 415 V
| range |
Acti 9
|
|
|---|---|---|
| product name |
Acti 9 iSW
|
|
| product or component type |
Switch disconnector
|
|
| device short name |
ISW
|
|
| device application |
Control
Isolation |
|
| poles description |
3P
|
|
| utilisation category |
AC-22A
|
|
| suitability for isolation |
Yes
|
| [Ie] rated operational current |
40 A at 415 V AC 50/60 Hz
|
|
|---|---|---|
| [Ue] rated operational voltage |
415 V AC 50/60 Hz
|
|
| [Icm] rated short-circuit making capacity |
4.2 kA switch-disconnector alone
|
|
| [Icw] rated short-time withstand current |
1260 A
|
|
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| control type |
Toggle
|
|
| local signalling |
ON/OFF indication
|
|
| contact position indicator |
Yes
|
|
| mounting mode |
Fixed
|
|
| mounting support |
DIN rail
|
|
| comb busbar and distribution block compatibility |
Top or bottom: YES
|
|
| 9 mm pitches |
6
|
|
| height |
85 mm
|
|
| width |
54 mm
|
|
| depth |
73 mm
|
|
| colour |
White
|
|
| mechanical durability |
20000 cycles
|
|
| electrical durability |
15000 cycles
|
|
| connections - terminals |
Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid
Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule |
|
| wire stripping length |
9 mm
|
|
| tightening torque |
3.5 N.m
|
| standards |
EN 60947-3
IEC 60947-3 |
|
|---|---|---|
| IP degree of protection |
IP20
|
|
| pollution degree |
3
|
|
| tropicalisation |
2
|
|
| relative humidity |
95 % at 55 °C
|
|
| ambient air temperature for operation |
-25…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
253 g
|
|
| Package 1 Height |
5.3 cm
|
|
| Package 1 width |
7.3 cm
|
|
| Package 1 Length |
9.3 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
4
|
|
| Package 2 Weight |
1.054 kg
|
|
| Package 2 Height |
3.12 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
20 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
44
|
|
| Package 3 Weight |
12.279 kg
|
|
| Package 3 Height |
30 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Acti 9 iSW & SW A9S65340
