Schneider Electric Rastavljač Compact INS80 - 3P - 80 A;28920

switch disconnector, Compact INS80 , 80 A, with red rotary handle and yellow front, 3 poles...

Brand: Schneider Electric
Product Code: 28920
Availability: Check availability

VAT-exclusive price: 9.629,00

VAT-inclusive price: 11.554,80

Qnt:

Description
Specification

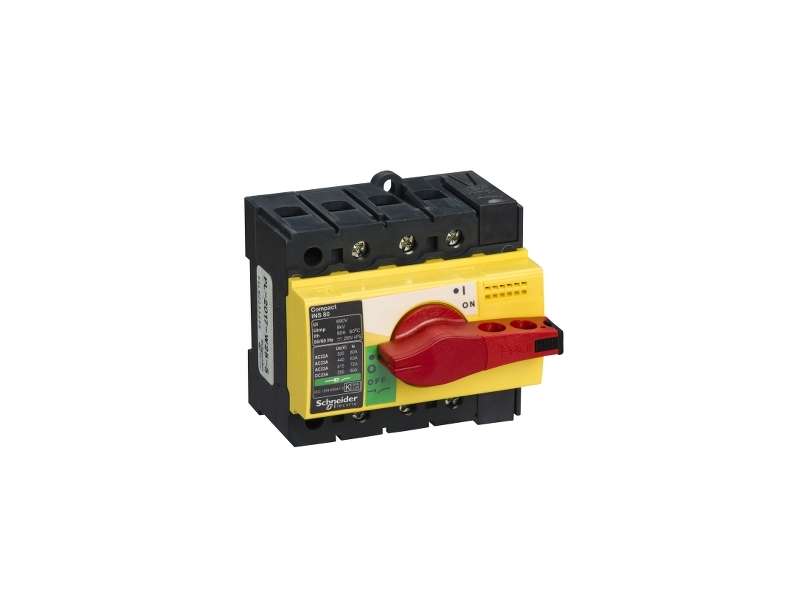

switch disconnector, Compact INS80 , 80 A, with red rotary handle and yellow front, 3 poles

Main
range	ComPact
product name	Compact INS
product or component type	Switch disconnector
poles description	3P
network type	DC AC
network frequency	50/60 Hz
[Ie] rated operational current	AC-23A: 40 A AC 50/60 Hz 500 V AC-23A: 63 A AC 50/60 Hz 440/480 V AC-22A: 80 A AC 50/60 Hz 220/240 V AC-22A: 80 A AC 50/60 Hz 380/415 V AC-22A: 80 A AC 50/60 Hz 440/480 V AC-22A: 80 A AC 50/60 Hz 500 V AC-23A: 72 A AC 50/60 Hz 380/415 V AC-23A: 80 A AC 50/60 Hz 220/240 V DC-22A: 80 A DC 125 V 2 poles in series DC-23A: 80 A DC 125 V 2 poles in series
[Ui] rated insulation voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ith] conventional free air thermal current	80 A at 60 °C
[Icm] rated short-circuit making capacity	15 kA switch-disconnector alone 500 V AC at 50/60 Hz 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz
[Ue] rated operational voltage	125 V DC 500 V AC 50/60 Hz
suitability for isolation	Yes
contact position indicator	Yes
visible break	No
pollution degree	3

Complementary
control type	Rotary handle
handle colour	Red
mounting mode	Fixed
mounting support	DIN rail Plate
upside connection	Front
downside connection	Front
cable cross section	1.5…50 mm²
maximum power	AC-23: 22 kW at 500/525 V AC 50/60 Hz AC-23: 22 kW at 220/240 V AC 50/60 Hz AC-23: 37 kW at 380/415 V AC 50/60 Hz AC-23: 37 kW at 440 V AC 50/60 Hz
rated duty	Uninterrupted
intermittent duty class	Class 120 - 60 %
enclosure dimensions for Ithe	190 mm x 115 mm x 55 mm
[Icw] rated short-time withstand current	0.067 kA during 20 s conforming to IEC 60947-3 1.73 kA during 3 s conforming to IEC 60947-3 3 kA during 1 s conforming to IEC 60947-3 5.5 kA during 30 s conforming to IEC 60947-3
mechanical durability	20000 cycles
electrical durability	AC-22A: 1500 cycles 220/240 V AC 50/60 Hz AC-22A: 1500 cycles 380/415 V AC 50/60 Hz AC-22A: 1500 cycles 440 V AC 50/60 Hz AC-22A: 1500 cycles 500 V AC 50/60 Hz AC-23A: 1500 cycles 220/240 V AC 50/60 Hz AC-23A: 1500 cycles 380/415 V AC 50/60 Hz AC-23A: 1500 cycles 440 V AC 50/60 Hz AC-23A: 1500 cycles 500 V AC 50/60 Hz DC-22A: 1500 cycles 250 V DC 2 poles in series DC-23A: 1500 cycles 250 V DC 2 poles in series
connection pitch	18 mm
height	85 mm
width	90 mm
depth	62.5 mm
net weight	0.5 kg

Environment
standards	IEC 60947-3 IEC 60947-1
product certifications	KEMA-KEUR CCC
IP degree of protection	IP40 conforming to IEC 60529
IK degree of protection	IK07 conforming to EN 50102
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	601.0 g
Package 1 Height	9.0 cm
Package 1 width	10.0 cm
Package 1 Length	10.0 cm
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Weight	11.234 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
