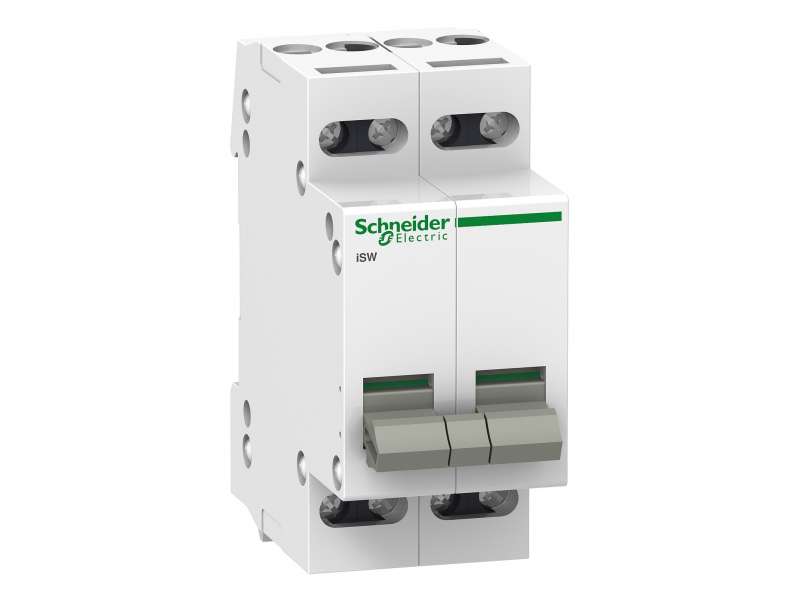

Schneider Electric Rastavljač Acti9 iSW - 3P - 20 A - 415V ; A9S60320
switch Acti9 iSW - 3 poles - 20 A - 415V...
VAT-exclusive price: 1.411,00 |
VAT-inclusive price: 1.693,20 |
switch Acti9 iSW - 3 poles - 20 A - 415V
| [Ie] rated operational current |
20 A at 415 V AC 50/60 Hz
|
|
|---|---|---|
| [Ue] rated operational voltage |
415 V AC 50/60 Hz
|
|
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz conforming to EN/IEC 60669-2-4
|
|
| [Uimp] rated impulse withstand voltage |
4 kV
|
|
| control type |
Toggle
|
|
| local signalling |
ON/OFF indication
|
|
| contact position indicator |
Yes
|
|
| mounting mode |
Fixed
|
|
| mounting support |
DIN rail
|
|
| 9 mm pitches |
4
|
|
| height |
77 mm
|
|
| width |
36 mm
|
|
| depth |
70 mm
|
|
| colour |
White
|
|
| mechanical durability |
300000 cycles
|
|
| electrical durability |
30000 cycles
|
|
| connections - terminals |
Tunnel type terminals - 10 mm² - rigid
Tunnel type terminals - 10 mm² - flexible Tunnel type terminals - 10 mm² - flexible with ferrule |
|
| wire stripping length |
9 mm
|
|
| tightening torque |
1.2 N.m
|
| standards |
EN/IEC 60669-2-4
|
|
|---|---|---|
| IP degree of protection |
IP4
|
|
| pollution degree |
2
|
|
| tropicalisation |
2
|
|
| relative humidity |
95 % at 55 °C
|
|
| ambient air temperature for operation |
-20…50 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
| Package 1 Weight |
0.117 kg
|
|
|---|---|---|
| Package 1 Height |
0.700 dm
|
|
| Package 1 width |
0.350 dm
|
|
| Package 1 Length |
0.800 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
18 months
| Warranty |
|---|
| range |
Acti 9
|
|
|---|---|---|
| product name |
Acti 9 iSW
|
|
| product or component type |
Switch disconnector
|
|
| device short name |
ISW
|
|
| device application |
Control
|
|
| poles description |
3P
|
|
| utilisation category |
AC-22A
|
|
| suitability for isolation |
Yes
|
-
Acti 9 iSW & SW A9S60320
