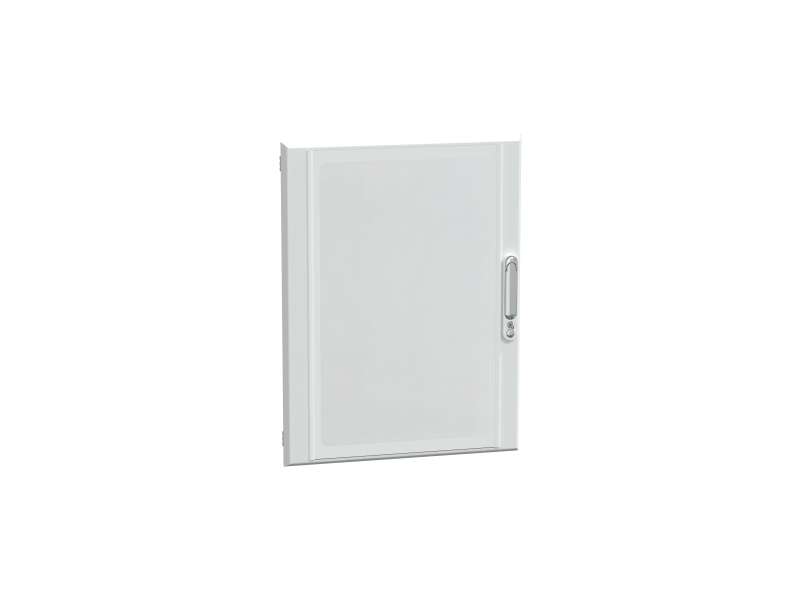

Schneider Electric Providna vrata Š600 15M Prisma G IP40; LVS08135
TRANSPARENT DOOR W600 15M PRISMA G IP30...
VAT-exclusive price: 17.213,00 |
VAT-inclusive price: 20.655,60 |
TRANSPARENT DOOR W600 15M PRISMA G IP30
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Door |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Provided equipment |
Door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge |
| type of door | Transparent |
| IP degree of protection |
IP43 with door, canopy and IP43 gasket IP30 without door IP40 with door IP41 with door and canopy |
| installation description |
Wall-mounted enclosure - width 600 mm Extension enclosure - width 600 mm |
|---|---|
| Door opening side | Reversible |
| Number of locks | 2 |
| door opening angle | 130 ° |
| Number of vertical modules [50 mm] | 15 |
| Enclosure material |
Handle: polyamide Glass Cover frame: treated sheet steel |
| Quantity per set | Set of 1 |
| Height | 780 mm |
| Width | 600 mm |
| Depth | 36 mm |
| Product weight | 5.52 kg |
| Material | Glass |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| IK degree of protection | IK08 conforming to EN/IEC 62262 |
|---|---|
| Standards |
IEC 61439-2 IEC 61439-1 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 64.0 cm |
| Package 1 Length | 85.0 cm |
| Package 1 Weight | 6.83 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 97.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 92.0 kg |
