Schneider Electric Providna vrata Š600 12M Prisma G IP40; LVS08134

TRANSPARENT DOOR W600 12M PRISMA G IP30...

Brand: Schneider Electric
Product Code: LVS08134
Availability: Check availability

VAT-exclusive price: 16.201,00

VAT-inclusive price: 19.441,20

Qnt:

Description
Specification

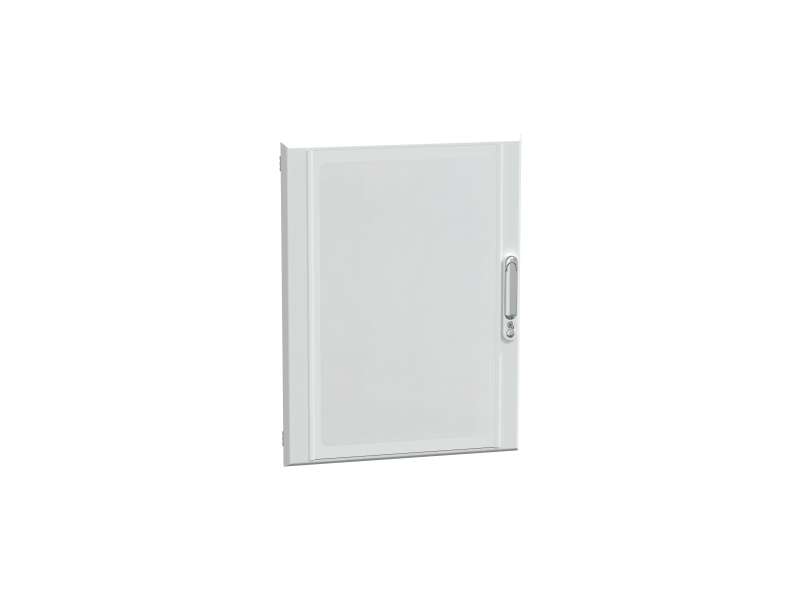

TRANSPARENT DOOR W600 12M PRISMA G IP30

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Door
Range compatibility	PrismaSeT (PrismaSeT G) enclosure
Provided equipment	Door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge
type of door	Transparent
IP degree of protection	IP43 with door, canopy and IP43 gasket IP30 without door IP40 with door IP41 with door and canopy

Complementary
installation description	Wall-mounted enclosure - width 600 mm Extension enclosure - width 600 mm
Door opening side	Reversible
Number of locks	1
door opening angle	130 °
Number of vertical modules [50 mm]	12
Enclosure material	Handle: polyamide Glass Cover frame: treated sheet steel
Quantity per set	Set of 1
Height	630 mm
Width	600 mm
Depth	36 mm
Net weight	4.5 kg
Material	Glass
Surface finish	Textured Matt
Colour	White (RAL 9003)

Environment
IK degree of protection	IK08 conforming to EN/IEC 62262
Standards	IEC 61439-2 IEC 61439-1
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.0 cm
Package 1 Width	64.2 cm
Package 1 Length	70.0 cm
Package 1 Weight	5.54 kg
Unit Type of Package 2	P12
Number of Units in Package 2	12
Package 2 Height	90.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	77.5 kg
