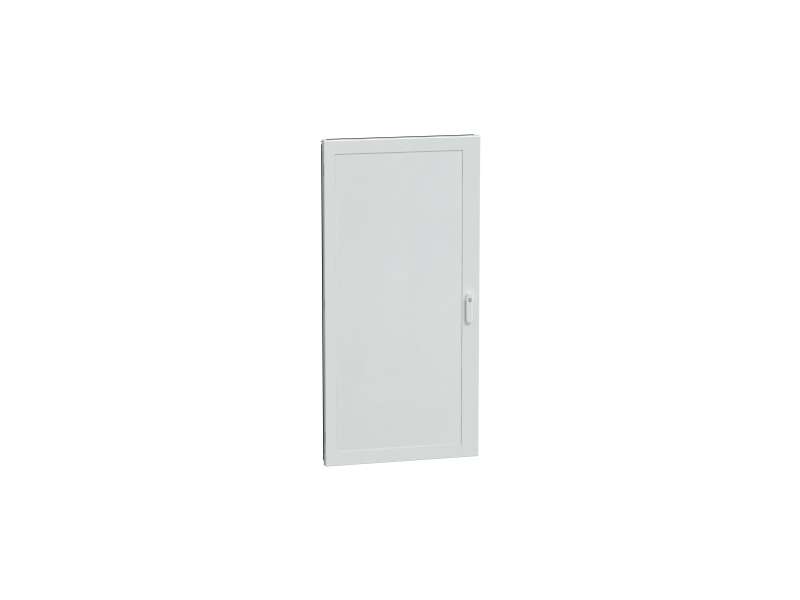

Schneider Electric Providna vrata + okvir Š800 33M Prisma G IP55; LVS08340
TRANSPARENT DOOR+FRAME W850 33M G IP55...
VAT-exclusive price: 78.752,00 |
VAT-inclusive price: 94.502,40 |
TRANSPARENT DOOR+FRAME W850 33M G IP55
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Door |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Provided equipment |
Door handle keylock (key 405) other keylock and insert to be ordered separately 3 hinge |
| type of door | Transparent |
| IP degree of protection | IP55 |
| installation description | Floor-standing enclosure - width 850 mm |
|---|---|
| Door opening side | Reversible |
| Number of locks | 3 |
| door opening angle | 180 ° |
| Number of vertical modules [50 mm] | 33 |
| Enclosure material |
Glass Treated sheet steel |
| Quantity per set | Set of 1 |
| Height | 1750 mm |
| Width | 850 mm |
| Product weight | 31.6 kg |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| IK degree of protection | IK10 conforming to EN/IEC 62262 |
|---|---|
| Standards |
IEC 61439-1 IEC 61439-2 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 87.0 cm |
| Package 1 Length | 178.0 cm |
| Package 1 Weight | 31.8 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 56.0 cm |
| Package 2 Width | 120.0 cm |
| Package 2 Length | 202.0 cm |
| Package 2 Weight | 185.0 kg |
