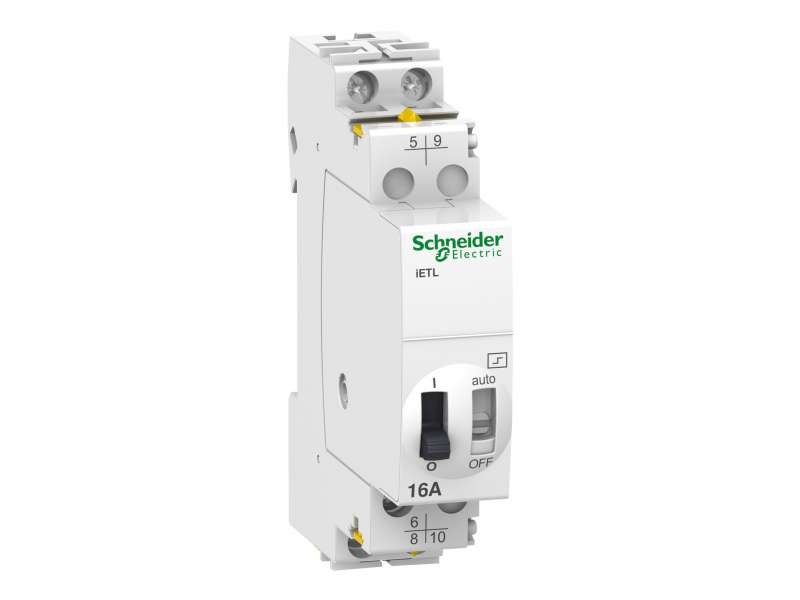

Schneider Electric Proširenje iETL iTL 16 - 2P - 1C/O + 1NO - 16A - kalem 12VDC - 24VAC 50/60Hz; A9C32116

extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 12VDC - 24VAC 50/60Hz...

Brand: Schneider Electric
Product Code: A9C32116
Availability: Check availability

VAT-exclusive price: 1.794,00

VAT-inclusive price: 2.152,80

Qnt:

extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 12VDC - 24VAC 50/60Hz

Main
range of product	Acti9
Product or component type	Extension for impulse relay
Device short name	IETL iTL 16
Relay application	Remote control
Poles description	2P
Pole contact composition	1 C/O + 1 NO
[In] rated current	16 A
Network type	AC

Complementary
Network frequency	50/60 Hz
[Ue] rated operational voltage	415 V AC 50/60 Hz
Control type	Toggle Remote control
Control signal type	Impulse
Switching frequency	5 switching operations/minute
Impulse duration	50 ms
Remote control type	Illuminated push-button 3 mA
Local signalling	ON/OFF indication
[Uc] control circuit voltage	24 V AC 50/60 Hz 12 V DC
Supply inrush power	19 VA
Mounting mode	Fixed, on right side of TL
Mounting support	35 mm symmetrical DIN rail
9 mm pitches	2
Height	60 mm
Width	18 mm
Depth	84 mm
Colour	White
Electrical durability	AC-21: 200000 cycles AC-22: 100000 cycles
Connections - terminals	Tunnel type terminals - <= 6 mm²
Auxiliary connection terminal	Tunnel type terminalscontrol circuit in 0.5…6 mm²
Range compatibility	Acti 9 (Acti9 iTL) iTL Acti 9 (Acti9 iTL) iTLi
Product compatibility	ITL 16A

Environment
Standards	EN 669-2-2 EN 669-1
Product certifications	GOST
Quality labels	CEBEC KEMA IMQ VDE NF
noise level	60 dB
IP degree of protection	IP20 conforming to IEC 60529
Pollution degree	3
Tropicalisation	2 conforming to IEC 60068-1
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-20…50 °C
Ambient air temperature for storage	-40…70 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.8 cm
Package 1 Width	7.8 cm
Package 1 Length	9.4 cm
Package 1 Weight	114 g
Unit Type of Package 2	BB1
Number of Units in Package 2	8
Package 2 Height	8.7 cm
Package 2 Width	10 cm
Package 2 Length	26.7 cm
Package 2 Weight	1.046 kg
Unit Type of Package 3	S03
Number of Units in Package 3	72
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	10.014 kg

Contractual warranty
Warranty	18 months
