Modicon M580

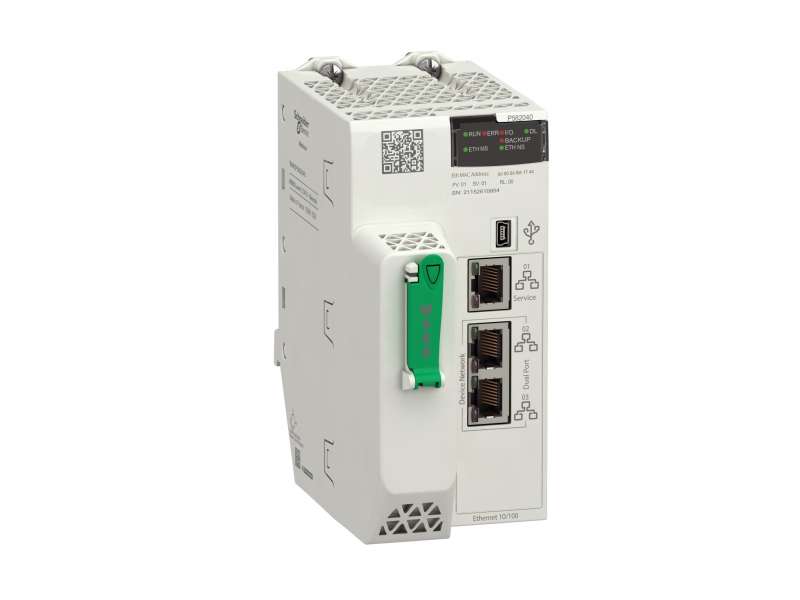

Processor module

4

2048 I/O

512 I/O

72

Serial link
Counter
Accurate time stamping
HART
Motion control
SSI encoder

Process control

Programmable loops

1 Ethernet TCP/IP for service port
2 Ethernet TCP/IP for device network
USB type mini B

8 - 2 rack(s) per remote drop

64

2 Ethernet communication module
8 AS-Interface module

DIO scanner
RIO scanner

Expandable flash, 4 GB for data storage
Integrated RAM, 10 kB for system memory
Integrated RAM, 8 MB for program process
Integrated RAM, 768 kB for data process
Integrated RAM, 2 MB for program safety
Integrated RAM, 512 kB for data safety

64 event tasks
2 auxiliary tasks
1 cyclic/periodic master task
1 periodic fast task

7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
10 Kinst/ms 100 % Boolean

295 mA at 24 V DC

600000 H

CE

3 gn

15 gn

0…60 °C

-40…85 °C

0...2000 m
2000...5000 m with derating factor

5…95 % at 55 °C without condensation

IP20

2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive

Safety
Corrosion resistance
Salt mist
Dust resistant
Hazardous location

Internal power supply via rack

1 LED (green)processor running (RUN):
1 LED (red)processor or system fault (ERR):
1 LED (red)I/O module fault (I/O):
1 LED (green)download in progress (DL):
1 LED (red)memory card or CPU flash fault (BACKUP):
1 LED (green/red)ETH MS (Ethernet port configuration status):
1 LED (green/red)Eth NS (Ethernet network status):
1 LED (green)processor in safety mode (SRUN):
1 LED (green)processor in maintenance mode (SMOD):
1 LED (red)I/O values overrided by user (FORCED IO):

0.849 kg

PCE

1

884 g

9 cm

18 cm

25 cm

S03

6

5.745 kg

30 cm

30 cm

40 cm

Green Premium product

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

Yes

China RoHS declaration

End of Life Information

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
