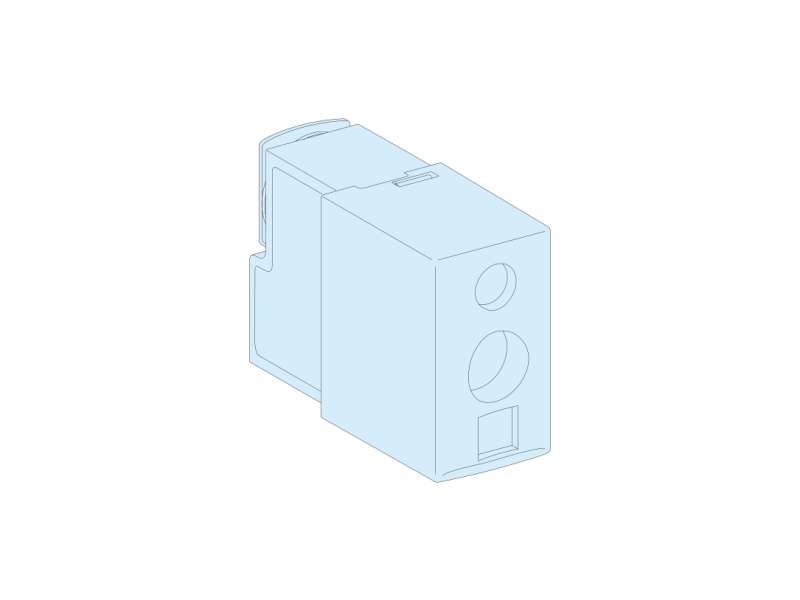

Schneider Electric Priključni blok, Linergy BW, opružni priključci 1 x 16mm², IPXXB, set od 12; LVS04152
Tap-off unit, Linergy BW, 55A, spring terminals 1 x 16mm², IPXXB, set of 12...
VAT-exclusive price: 9.770,00 |
VAT-inclusive price: 11.724,00 |
Tap-off unit, Linergy BW, 55A, spring terminals 1 x 16mm², IPXXB, set of 12
| Range | Linergy |
|---|---|
| Range of product | Linergy BW |
| Product or component type | Tap-off unit |
| Accessory / separate part category | Connection accessory |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure Linergy (Linergy BW) busbar |
| Product destination | Busbar |
| installation description |
Cubicle Floor-standing enclosure Wall-mounted enclosure Pack enclosure |
|---|---|
| [Ie] rated operational current | 55 A |
| Connections - terminals | 1 spring terminal 16 mm² |
| Quantity per set | Set of 12 |
| Net weight | 0.40 kg |
| IP degree of protection | IPxx B |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.7 cm |
| Package 1 Width | 4.8 cm |
| Package 1 Length | 23.0 cm |
| Package 1 Weight | 320.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.0 cm |
| Package 2 Width | 23.0 cm |
| Package 2 Length | 25.2 cm |
| Package 2 Weight | 3.213 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 360 |
| Package 3 Height | 59.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 122.0 kg |
