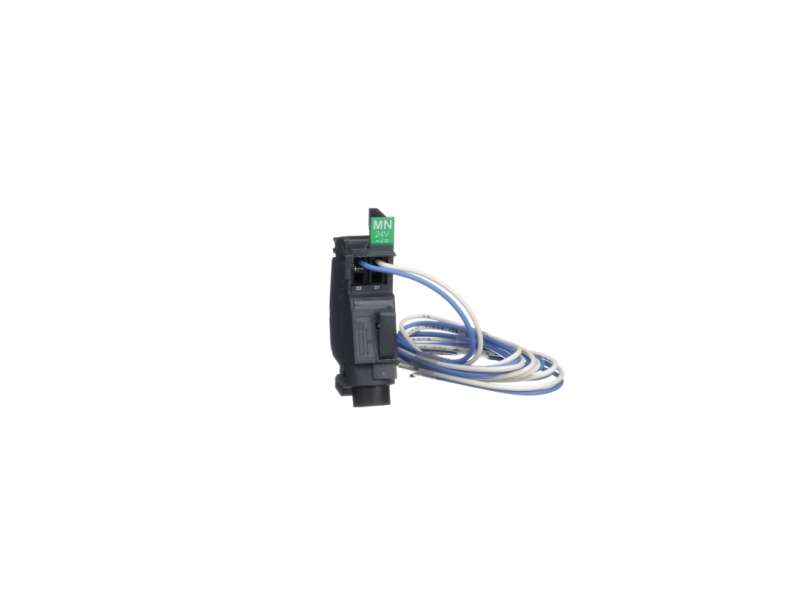

Schneider Electric Prethodno ožičeni MN podnaponski okidač, Compact NSXm, nazivni napon 24 VDC, 24 VAC 50/60Hz
Pre-wired undervoltage release MN, ComPacT NSXm, 24VDC, 24VAC 50/60Hz...
Price on request
Pre-wired undervoltage release MN, ComPacT NSXm, 24VDC, 24VAC 50/60Hz
| range | ComPact |
|---|---|
| device short name | MN |
| product or component type | Voltage release |
| device application | Control |
| range compatibility |
ComPacT NSXm new generation ComPact NSXm PowerPact B |
| voltage release type |
Opening coil Undervoltage release |
| [Uc] control circuit voltage |
24 V AC 50/60 Hz 24 V DC |
| Operating threshold |
0.35...0.7 x Un opening 0.85 x Un closing |
|---|---|
| response time | < 50 ms |
| auxiliary connection terminal | Pre-wired 0…0.8 mm² (AWG 18)stranded copper |
| wire stripping length | 8 mm |
| Cable length | 1 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 80.0 g |
| Package 1 Height | 3.4 cm |
| Package 1 width | 6.1 cm |
| Package 1 Length | 8.3 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 837.0 g |
| Package 2 Height | 9.0 cm |
| Package 2 width | 8.5 cm |
| Package 2 Length | 13.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Weight | 10.5 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
