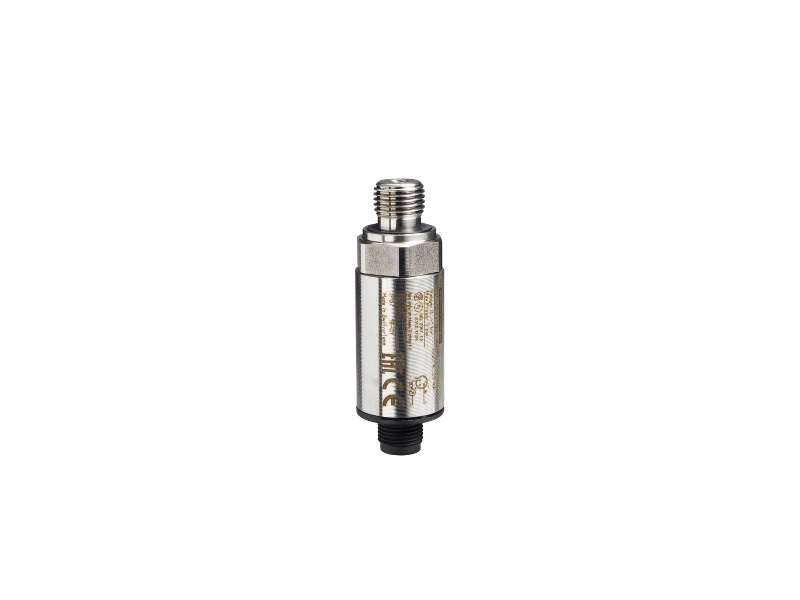

Schneider Electric Presostat XMLG - 0..1 bar - G 1/4A (muški) - 24 V - 4..20 mA - set od 1;XMLG001D21

Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...1 bar, G 1/4 A (male), 24 V, 4...20 mA, set of 1...

Brand: Schneider Electric
Product Code: XMLG001D21
Availability: Check availability

VAT-exclusive price: 27.806,00

VAT-inclusive price: 33.367,20

Qnt:

Description
Specification

Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...1 bar, G 1/4 A (male), 24 V, 4...20 mA, set of 1

Main
range of product	OsiSense XM
product or component type	Electronic pressure sensors
pressure sensor type	Pressure transmitter
pressure sensor name	XMLG
pressure sensor size	1 bar
fluid connection type	G 1/4A (male) conforming to DIN 3852-E
controlled fluid	Air (-15…125 °C) Corrosive fluid (-15…125 °C) Hydraulic oil (-15…125 °C) Fresh water (0…125 °C)
type of output signal	Analogue
analogue output function	4...20 mA, 2 wires
electrical connection	1 male connector M12, 3 pins
[Us] rated supply voltage	12 V DC (voltage limits: 8…33 V) 24 V DC (voltage limits: 8…33 V)
Quantity per set	Set of 1
type of packing	Individual
diameter	22.8 mm

Complementary
pressure setting range	0…1 bar
maximum permissible accidental pressure	2.7 bar
destruction pressure	3 bar
local display	Without
electrical circuit type	Control circuit
current consumption	< 20 mA
materials in contact with fluid	Ceramic FPM (Viton) Stainless steel type AISI 303
operating position	Any position
protection type	Load short-circuit Reverse polarity
surge withstand	1 kV 42 Ohm conforming to EN/IEC 61000-4-5 500 kV 12 Ohm conforming to EN/IEC 61000-4-5
[Uimp] rated impulse withstand voltage	0.5 kV
response time on output	< 2 ms
drift of the sensitivity	+/- 0.015 % of measuring range/°C
drift of the zero point	+/- 0.015 % of measuring range/°C
measurement accuracy	+/- 0.3 % of the measuring range
repeat accuracy	+/- 0.1 % of the measuring range
mechanical durability	10000000 cycles
net weight	0.095 kg
height	58.1 mm
length	48.5 mm
scale type	Fixed differential

Environment
standards	CE EN/IEC 61326-2-3
product certifications	EAC CSA C22.2 No 14 UL 508
protective treatment	TC
ambient air temperature for operation	-15…85 °C
ambient air temperature for storage	-40…85 °C
vibration resistance	20 gn (f= 9…2000 Hz) conforming to EN/IEC 60028-2-6
shock resistance	25 gn for 11 ms conforming to EN/IEC 60068-2-27
resistance to electrostatic discharge	15 kV in air conforming to EN/IEC 61000-4-2 8 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	200 V/m 80…1000 Hz conforming to EN/IEC 61000-4-3
resistance to fast transients	4 kV conforming to EN/IEC 61000-4-4
resistance to conducted disturbances	30 V (0.15…80 Hz) conforming to EN/IEC 61000-4-6
resistance to magnetic fields	30 A/m 50 Hz conforming to EN/IEC 61000-4-8
IP degree of protection	IP66 conforming to EN/IEC 60529 IP67 conforming to EN/IEC 60529
NEMA degree of protection	NEMA 4

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	13.5 cm
Number of Units in Package 1	1
Package 2 Width	30.0 cm
Package 2 Height	15.0 cm
Package 2 Weight	1.927 kg
Package 1 Width	10.5 cm
Package 1 Height	5.0 cm
Package 1 Weight	134.0 g
Number of Units in Package 2	12
Unit Type of Package 2	S02
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months

Main
range of product	OsiSense XM
product or component type	Electronic pressure sensors
pressure sensor type	Pressure transmitter
pressure sensor name	XMLG
pressure sensor size	1 bar
fluid connection type	G 1/4A (male) conforming to DIN 3852-E
controlled fluid	Air (-15…125 °C) Corrosive fluid (-15…125 °C) Hydraulic oil (-15…125 °C) Fresh water (0…125 °C)
type of output signal	Analogue
analogue output function	4...20 mA, 2 wires
electrical connection	1 male connector M12, 3 pins
[Us] rated supply voltage	12 V DC (voltage limits: 8…33 V) 24 V DC (voltage limits: 8…33 V)
Quantity per set	Set of 1
type of packing	Individual
diameter	22.8 mm

Complementary
pressure setting range	0…1 bar
maximum permissible accidental pressure	2.7 bar
destruction pressure	3 bar
local display	Without
electrical circuit type	Control circuit
current consumption	< 20 mA
materials in contact with fluid	Ceramic FPM (Viton) Stainless steel type AISI 303
operating position	Any position
protection type	Load short-circuit Reverse polarity
surge withstand	1 kV 42 Ohm conforming to EN/IEC 61000-4-5 500 kV 12 Ohm conforming to EN/IEC 61000-4-5
[Uimp] rated impulse withstand voltage	0.5 kV</
