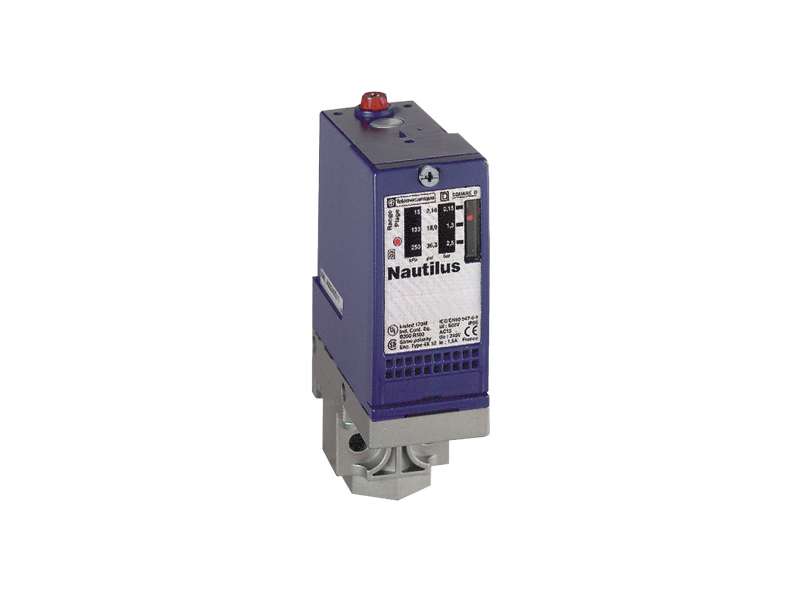

Schneider Electric Presostat XMLA 20 bar - detekcija jedne granične vrednosti - 1 C/O;XMLA020A2S11
Electromechanical pressure sensor, Pressure sensors XM, switch XMLA 20 bar, fixed scale 1 threshold, 1 C/O...
VAT-exclusive price: 14.887,00 |
VAT-inclusive price: 17.864,40 |
Electromechanical pressure sensor, Pressure sensors XM, switch XMLA 20 bar, fixed scale 1 threshold, 1 C/O
| range of product |
OsiSense XM
|
|
|---|---|---|
| product or component type |
Electromechanical pressure sensor
|
|
| pressure sensor type |
Electromechanical pressure sensor
|
|
| device short name |
XMLA
|
|
| pressure sensor size |
20 bar
|
|
| controlled fluid |
Air (0…70 °C)
Fresh water (0…70 °C) Hydraulic oil (0…70 °C) |
|
| fluid connection type |
G 1/4 (female) conforming to ISO 228
|
|
| electrical connection |
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
1 connector Pg 13 |
|
| AWG gauge |
AWG 20...AWG 14
|
|
| cable entry |
Cable gland 9…13 mm
|
|
| contacts type and composition |
1 C/O
|
|
| product specific application |
-
|
|
| pressure switch type of operation |
Detection of 1 single threshold
|
|
| electrical circuit type |
Control circuit
|
|
| scale type |
Fixed differential
|
|
| local display |
With
|
|
| adjustable range of switching point on rising pressure |
1…20 bar
|
|
| adjustable range of switching point on falling pressure |
0.6…19 bar
|
|
| maximum permissible accidental pressure |
45 bar
|
|
| destruction pressure |
90 bar
|
|
| pressure actuator |
Diaphragm
|
|
| materials in contact with fluid |
Nitrile
Brass Zinc alloy |
|
| enclosure material |
Zinc alloy
|
|
| [In] rated current |
3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
| natural differential at low setting |
0.4 bar (+/- 0.2 bar)
|
|
|---|---|---|
| natural differential at high setting |
1 bar (+/- 0.1 bar)
|
|
| maximum permissible pressure - per cycle |
25 bar
|
|
| terminal block type |
4 terminals
|
|
| maximum operating rate |
120 cyc/mn
|
|
| repeat accuracy |
2 %
|
|
| [Ui] rated insulation voltage |
300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
|
| [Uimp] rated impulse withstand voltage |
6 kV EN/IEC 60947-1
|
|
| auxiliary contacts operation |
Snap action
|
|
| contacts material |
Silver contacts
|
|
| maximum resistance across terminals |
25 mOhm conforming to IEC 255-7 category 3
25 mOhm conforming to NF C 93-050 method A |
|
| short-circuit protection |
10 A cartridge fuse, type gG (gl)
|
|
| mechanical durability |
5000000 cycles
|
|
| setting |
External
|
|
| height |
113 mm
|
|
| depth |
75 mm
|
|
| width |
35 mm
|
|
| net weight |
0.685 kg
|
| standards |
CSA C22.2 No 14
UL 508 EN/IEC 60947-5-1 CE |
|
|---|---|---|
| product certifications |
UL
LROS (Lloyds register of shipping) EAC |
-
OsiSense XM XMLA020A2S11
