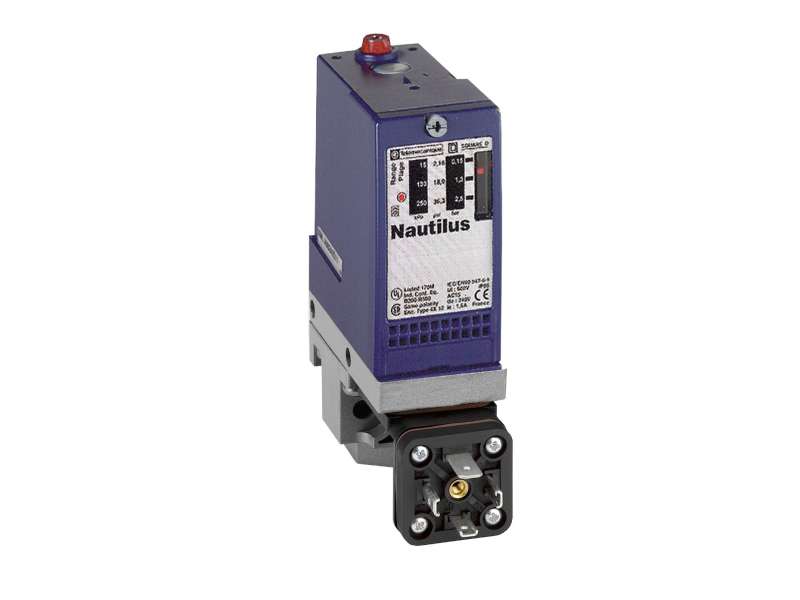

Schneider Electric Presostat XMLA 160 bar - detekcija jedne granične vrednosti - 1 C/O;XMLA160D2C11
Electromechanical pressure sensor, Pressure sensors XM, switch XMLA 160 bar, fixed scale 1 threshold, 1 C/O...
VAT-exclusive price: 17.892,00 |
VAT-inclusive price: 21.470,40 |
Electromechanical pressure sensor, Pressure sensors XM, switch XMLA 160 bar, fixed scale 1 threshold, 1 C/O
range of product |
OsiSense XM
|
|
---|---|---|
product or component type |
Electromechanical pressure sensor
|
|
pressure sensor type |
Electromechanical pressure sensor
|
|
device short name |
XMLA
|
|
pressure sensor size |
160 bar
|
|
controlled fluid |
Hydraulic oil (0…160 °C)
|
|
fluid connection type |
G 1/4 (female) conforming to ISO 228
|
|
electrical connection |
1 male connector EN 175301-803-A (ex DIN43650), 4 pins
|
|
contacts type and composition |
1 C/O
|
|
product specific application |
-
|
|
pressure switch type of operation |
Detection of 1 single threshold
|
|
electrical circuit type |
Control circuit
|
|
scale type |
Fixed differential
|
|
local display |
With
|
|
adjustable range of switching point on rising pressure |
10…160 bar
|
|
adjustable range of switching point on falling pressure |
4.5…142 bar
|
|
maximum permissible accidental pressure |
360 bar
|
|
destruction pressure |
720 bar
|
|
pressure actuator |
Piston
|
|
materials in contact with fluid |
FPM, FKM
Steel Brass PTFE |
|
enclosure material |
Zinc alloy
|
|
[In] rated current |
3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
natural differential at low setting |
5.5 bar (+/- 1 bar)
|
|
---|---|---|
natural differential at high setting |
18 bar (+/- 3 bar)
|
|
maximum permissible pressure - per cycle |
200 bar
|
|
terminal block type |
4 terminals
|
|
maximum operating rate |
60 cyc/mn
|
|
repeat accuracy |
2 %
|
|
[Ui] rated insulation voltage |
300 V conforming to UL 508
500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
|
[Uimp] rated impulse withstand voltage |
EN/IEC 60947-1 6 kV
|
|
auxiliary contacts operation |
Snap action
|
|
contacts material |
Silver contacts
|
|
maximum resistance across terminals |
25 mOhm conforming to IEC 255-7 category 3
25 mOhm conforming to NF C 93-050 method A |
|
short-circuit protection |
10 A cartridge fuse, type gG (gl)
|
|
mechanical durability |
6000000 cycles
|
|
setting |
External
|
|
height |
113 mm
|
|
depth |
75 mm
|
|
width |
35 mm
|
|
net weight |
0.78 kg
|
standards |
EN/IEC 60947-5-1
UL 508 CE CSA C22.2 No 14 |
|
---|---|---|
product certifications |
BV
LROS (Lloyds register of shipping) UL EAC CCC CSA |
|
protective treatment |
TC standard version
|
|
ambient air temperature for operation |
-25…70 °C
|
