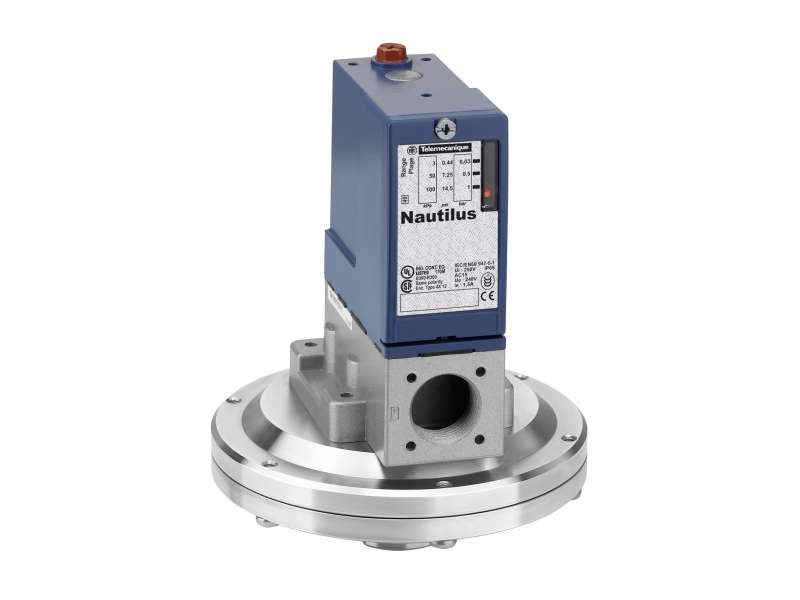

Schneider Electric Presostat XMLA 1 bar - detekcija jedne granične vrednosti - 1 C/O;XMLA001R2S12
Electromechanical pressure sensor, Pressure sensors XM, switch XMLA 1 bar, fixed scale 1 threshold, 1 C/O...
VAT-exclusive price: 17.253,00 |
VAT-inclusive price: 20.703,60 |
Electromechanical pressure sensor, Pressure sensors XM, switch XMLA 1 bar, fixed scale 1 threshold, 1 C/O
| MAIN | |
|---|---|
| Range of product | OsiSense XM |
| Product or component type | Electromechanical pressure sensor |
| Pressure sensor type | Electromechanical pressure sensor |
| Device short name | XMLA |
| Pressure sensor size | 1 bar |
| Controlled fluid |
Air (0…160 °C) Hydraulic oil (0…160 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Electrical connection |
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² 1 connector ISO M20 |
| AWG gauge | AWG 20...AWG 14 |
| Cable entry | Cable gland 7…13 mm |
| Contacts type and composition | 1 C/O |
| Product specific application | - |
| Pressure switch type of operation | Detection of 1 single threshold |
| Electrical circuit type | Control circuit |
| Scale type | Fixed differential |
| Local display | With |
| Adjustable range of switching point on rising pressure | 0.03…1 bar |
| Adjustable range of switching point on falling pressure | 0.01…0.96 bar |
| Maximum permissible accidental pressure | 2.25 bar |
| Destruction pressure | 4.5 bar |
| Pressure actuator | Diaphragm |
| Materials in contact with fluid |
304L stainless steel Steel FPM, FKM |
| Enclosure material | Zinc alloy |
| [In] rated current |
3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
| COMPLEMENTARY | |
| Natural differential at low setting | 0.02 bar (+/- 0.01 bar) |
| Natural differential at high setting | 0.04 bar (+/- 0.01 bar) |
| Maximum permissible pressure - per cycle | 1.25 bar |
| Terminal block type | 4 terminals |
| Maximum operating rate | 120 cyc/mn |
| Repeat accuracy | 2 % |
| [Ui] rated insulation voltage |
300 V conforming to UL 508 500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV EN/IEC 60947-1 |
| Auxiliary contacts operation | Snap action |
| Contacts material | Silver contacts |
| Maximum resistance across terminals |
25 mOhm conforming to IEC 255-7 category 3 25 mOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse, type gG (gl) |
| Mechanical durability | 4000000 cycles |
| Setting | External |
| Height | 162 mm |
| Depth | 110 mm |
| Width | 110 mm |
| Net weight | 2.555 kg |
| ENVIRONMENT | |
| Standards |
CE EN/IEC 60947-5-1 CSA C22.2 No 14 UL 508 |
| Product certifications |
CCC BV LROS (Lloyds register of shipping) CSA EAC UL |
| Protective treatment | TC standard version |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Operating position | Any position |
| Vibration resistance | 2 gn conforming to IEC 60068-2-6 (f = 30…500 Hz) |
| Shock resistance | 30 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class |
Class I conforming to IEC 1140 Class I conforming to IEC 536 Class I conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to EN/IEC 60529 |
| PACKING UNITS | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.552 kg |
| Package 1 Height | 16 cm |
| Package 1 width | 15 cm |
| Package 1 Length | 15 cm |
| OFFER SUSTAINABILITY | |
| Sustainable offer status | Green Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| CONTRACTUAL WARRANTY | |
| Warranty | 18 months |
-
OsiSense XM XMLA001R2S12
