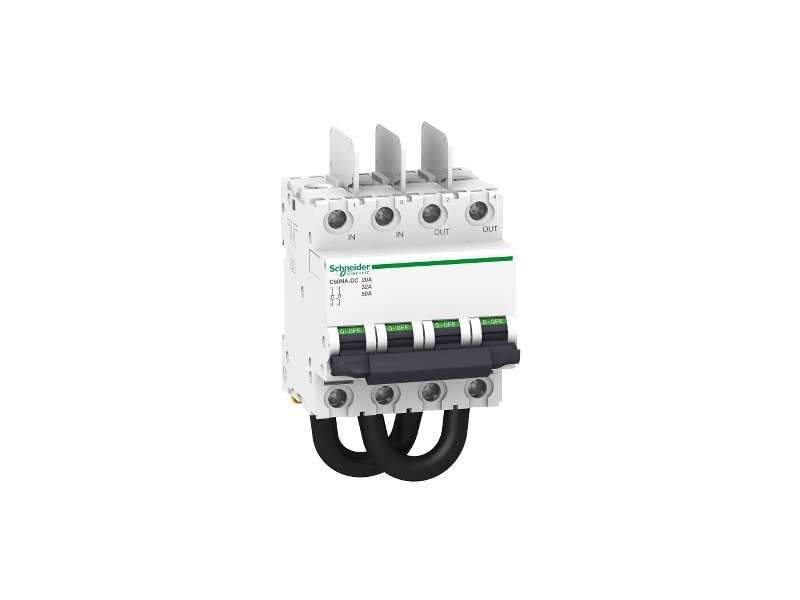

Schneider Electric Prekidač za isključivanje, Acti9 C60NA-DC, fotonaponski, 2P, 50A za 700VDC, 32A za 800VDC i 20A za 1000VDC;A9N61690
switch disconnector, Acti9 C60NA-DC, photovoltaic, 2P, 50A for 700VDC, 32A for 800VDC and 20A for 1000VDC...
VAT-exclusive price: 17.164,00 |
VAT-inclusive price: 20.596,80 |
switch disconnector, Acti9 C60NA-DC, photovoltaic, 2P, 50A for 700VDC, 32A for 800VDC and 20A for 1000VDC
| switch application |
Photovoltaic PV array Photovoltaic inverter protection |
|---|---|
| range | Acti 9 |
| range of product | C60 |
| product or component type | Switch disconnector |
| product name | C60 |
| device short name | C60NA-DC |
| poles description | 2P |
| utilisation category | DC-21B |
| suitability for isolation | Yes conforming to EN/IEC 60947-3 |
| [Ie] rated operational current |
20 A DC-21B 1000 V DC 32 A DC-21B 800 V DC 50 A DC-21B 700 V DC |
|---|---|
| Voltage Drop |
100 mV 5.02 mOhm 2 W 20 A 151 mV 5.02 mOhm 4.53 W 30 A 201 mV 5.02 mOhm 8.04 W 40 A 251 mV 5.02 mOhm 12.55 W 60 A |
| [Ui] rated insulation voltage | 1000 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| control type | Toggle |
| local signalling | ON/OFF indication |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 8 |
| height | 132.7 mm |
| width | 72 mm |
| depth | 77.4 mm |
| net weight | 0.545 kg |
| colour | White |
| mechanical durability | 20000 cycles |
| electrical durability | 300 cycles |
| connections - terminals |
Tunnel terminal (upside) 1…35 mm² rigid Tunnel terminal (upside) 1…25 mm² flexible Pre-wired cable (downside) |
| wire stripping length | 14 mm |
| tightening torque | 3.5 N.m |
| compatibility code | C60NA-DC |
| standards | EN/IEC 60947-3 |
|---|---|
| pollution degree | 2 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 565.0 g |
| Package 1 Height | 8.0 cm |
| Package 1 width | 7.5 cm |
| Package 1 Length | 13.6 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 240 |
| Package 2 Weight | 147.9 kg |
| Package 2 Height | 50.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 30 |
| Package 3 Weight | 17.797 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
