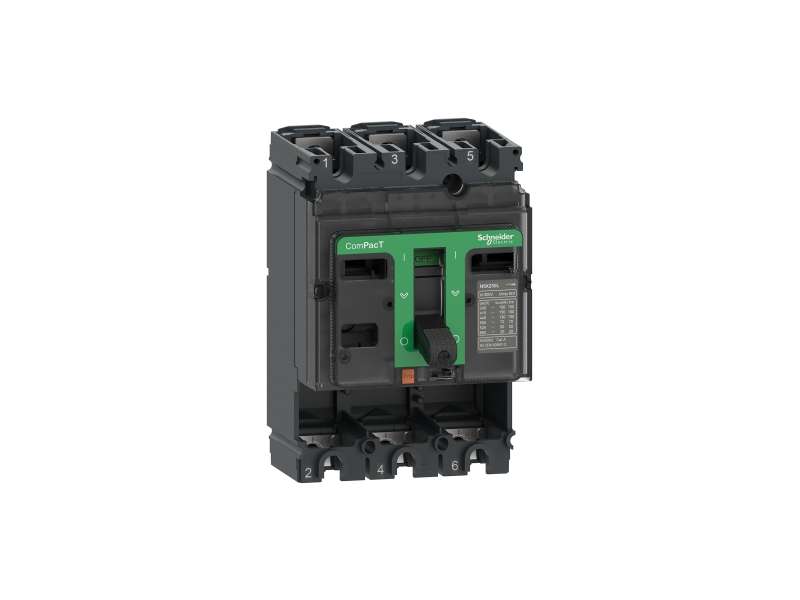

Schneider Electric Prekidač osnovni model, ComPacT NSX100B, 25 kA na 415 VAC 50/60 Hz, 100 A, bez zaštitne jedinice, 3P;C10B3

Schneider Electric Prekidač osnovni model, ComPacT NSX100B, 25 kA na 415 VAC 50/60 Hz, 100 A, bez zaštitne jedinice, 3P;C10B3

Circuit breaker basic frame, ComPacT NSX100B, 25kA/415VAC, 3 poles, 100A frame rating, without trip unit...

Brand: Schneider Electric
Product Code: C10B3
Availability: Check availability
VAT-exclusive price: 14.447,00
VAT-inclusive price: 17.336,40

Circuit breaker basic frame, ComPacT NSX100B, 25kA/415VAC, 3 poles, 100A frame rating, without trip unit


Main
range ComPacT new generation
product name ComPacT NSX new generation
device short name NSX100B
product or component type Basic frame
device application Distribution
poles description 3P
[In] rated current 100 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
network type AC
network frequency 50/60 Hz
suitability for isolation Yes conforming to EN/IEC 60947-2
utilisation category Category A
[Icu] rated ultimate short-circuit breaking capacity 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Performance level B 25 kA 415 V AC
control type Toggle
mounting mode Fixed
Complementary
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability 50000 cycles conforming to IEC 60947-2
electrical durability 10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2
20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2
30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2
50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
mounting support Backplate
upside connection Front
downside connection Front
connection pitch 35 mm
protection type Without protection
Width (W) 105 mm
Height (H) 161 mm
Depth (D) 86 mm
Environment
standards EN/IEC 60947-2
UL 508
product certifications UL
CSA
pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
ambient air temperature for operation -25…70 °C
ambient air temperature for storage -50…85 °C

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 1.428 kg
Package 1 Height 14.0 cm
Package 1 width 11.2 cm
Package 1 Length 19.2 cm
Unit Type of Package 2 P12
Number of Units in Package 2 56
Package 2 Weight 96.0 kg
Package 2 Height 42.5 cm
Package 2 width 80.0 cm
Package 2 Length 120.0 cm
Unit Type of Package 3 S03
Number of Units in Package 3 7
Package 3 Weight 10.376 kg
Package 3 Height 30.0 cm
Package 3 width 30.0 cm
Package 3 Length 40.0 cm

Main
range ComPacT new generation
product name ComPacT NSX new generation
device short name NSX100B
product or component type Basic frame
device application Distribution
poles description 3P
[In] rated current 100 A at 40 °C
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
network type AC
network frequency 50/60 Hz
suitability for isolation Yes conforming to EN/IEC 60947-2
utilisation category Category A
[Icu] rated ultimate short-circuit breaking capacity 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Performance level B 25 kA 415 V AC
control type Toggle
mounting mode Fixed
Complementary
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability 50000 cycles conforming to IEC 60947-2
electrical durability 10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2
20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2
30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2
50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
mounting support Backplate
upside connection Front
downside connection Front
connection pitch 35 mm
protection type Without protection
Width (W) 105 mm
Height (H) 161 mm
Depth (D) 86 mm
Environment
standards EN/IEC 60947-2
UL 508
product certifications UL
CSA
pollution degree 3 conforming to IEC 60664-1
