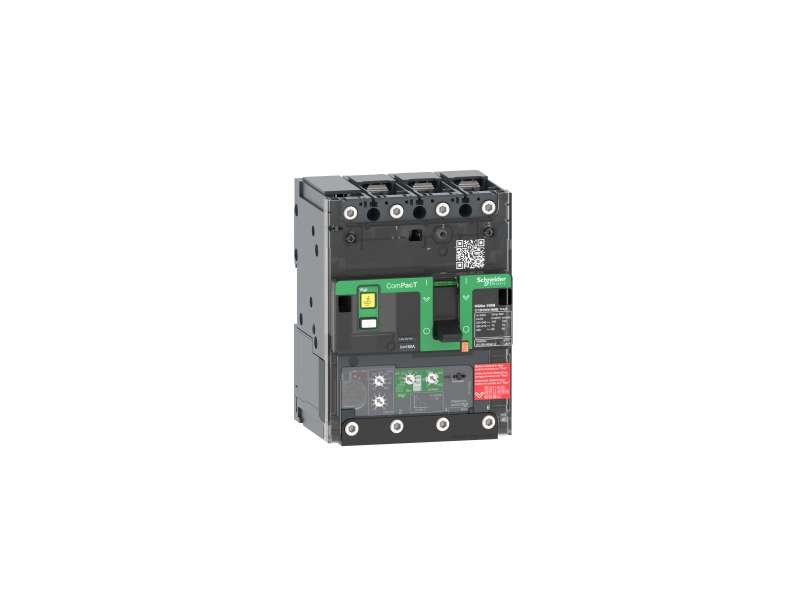

Schneider Electric Prekidač ComPacT NSXm E (16 kA na 415 VAC), 4P 4d, 25 A struja Micrologic 4.1 zaštitna jedinica, stopice i sabirnice;C11E44V025B
Circuit breaker, ComPacT NSXm 100E, 16kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 25A, lugs/busbars...
VAT-exclusive price: 85.152,00 |
VAT-inclusive price: 102.182,40 |
Circuit breaker, ComPacT NSXm 100E, 16kA/415VAC, 4 poles, MicroLogic 4.1 trip unit 25A, lugs/busbars
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSXm new generation |
| range of product | ComPacT NSXm new generation |
| device short name | NSXm 100E |
| product or component type | Earth leakage circuit breaker |
| device application | Distribution |
| poles description | 4P |
| protected poles description | 4D |
| neutral position | Left |
| [In] rated current | 25 A at 40 °C |
| [Ue] rated operational voltage | 440 V AC 50/60 Hz |
| network type | AC |
| network frequency | 50/60 Hz |
| suitability for isolation | Yes conforming to IEC 60947-2 |
| utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity |
25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | E 16 kA 415 V AC |
| trip unit name | Micrologic 4.1 |
| trip unit technology | Electronic |
| trip unit protection functions | LSoIR |
| control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity |
25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| mechanical durability | 20000 cycles |
| electrical durability |
20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In |
| power dissipation per pole | 1.01 W |
| mounting support | Backplate |
| mounting position |
Horizontal and vertical Flat on the back |
| upside connection | Front |
| downside connection | Front |
| Connection terminals | Compression lug/busbar |
| connection pitch |
35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 12 module |
| trip unit rating | 25 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 10...25 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range |
200 s at 1.5 x Ir 8 s at 6 x Ir 5 s at 7.2 x Ir |
| Neutral protection settings | 1 x Ir (4D) |
| thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 375 A |
| earth-leakage protection | Integrated |
| earth-leakage protection class |
Class A Class AC |
| Earth-leakage protection sensitity adjustment type IΔn | Adjustable |
| [IΔn] earth-leakage protection sensitivity adjustment range |
30 mA 100 mA 300 mA 500 mA 1 A 3 A 5 A |
| earth-leakage sensitivity |
30 mA for class A 100 mA for class A 300 mA for class A 500 mA for class A 1 A for class A 30 mA for class AC 100 mA for class AC 300 mA for class AC 500 mA for class AC 1 A for class AC 3 A for class AC 5 A for class AC |
| Earth-leakage protection time delay adjustement type Δt | Adjustable |
| [Δt] Earth-leakage protection time delay adjustment range |
0 ms 60 ms 150 ms 500 ms 1000 ms |
| Number of slots for electrical auxiliaries |
1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| local signalling | Flag (green) for presence of auxiliary contacts |
| Width (W) | 108 mm |
| Height (H) | 144 mm |
| Depth (D) | 80 mm |
| net weight | 1.63 kg |
| colour | Grey (RAL 7016) |
| standards | EN/IEC 60947 |
|---|---|
| pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| relative humidity | 0…95 % |
| operating altitude |
2000 m without derating 5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.791 kg |
| Package 1 Height | 14.0 cm |
| Package 1 width | 16.0 cm |
| Package 1 Length | 19.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 7.605 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
