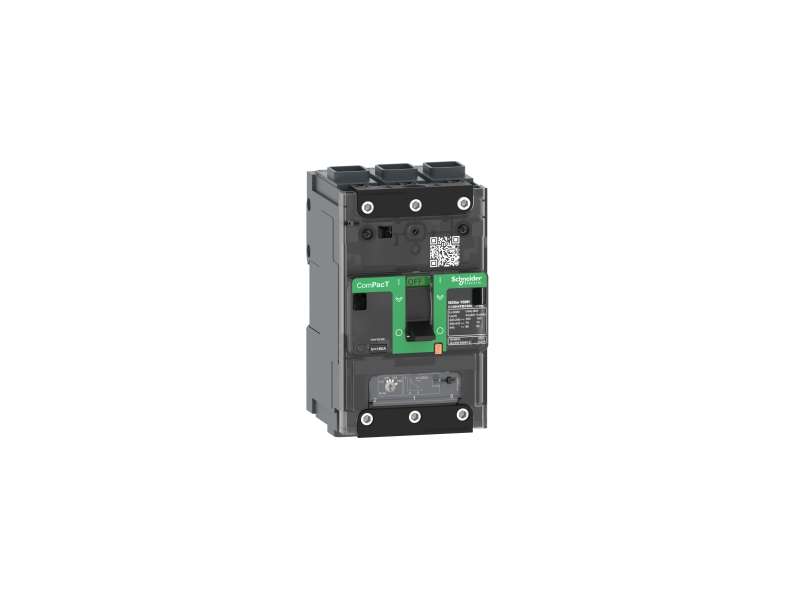

Schneider Electric Prekidač ComPacT NSXm E (16 kA na 415 VAC), 3P 3d, 40 A struja TMD zaštitna jedinica, kompresione stopice i sabirnice;C11E3TM040
Circuit breaker, ComPacT NSXm 100E, 16kA/415VAC, 3 poles, TMD trip unit 40A, lugs/busbars...
VAT-exclusive price: 19.578,00 |
VAT-inclusive price: 23.493,60 |
Circuit breaker, ComPacT NSXm 100E, 16kA/415VAC, 3 poles, TMD trip unit 40A, lugs/busbars
| range | ComPacT new generation |
|---|---|
| product name | ComPacT NSXm new generation |
| range of product | ComPacT NSXm new generation |
| device short name | NSXm 100E |
| product or component type | Circuit breaker |
| device application | Distribution |
| poles description | 3P |
| protected poles description | 3D |
| [In] rated current | 40 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| network type | AC |
| network frequency | 50/60 Hz |
| suitability for isolation | Yes conforming to IEC 60947-2 |
| utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity |
25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | E 16 kA 415 V AC |
| trip unit name | TM-D |
| trip unit technology | Thermal-magnetic |
| trip unit protection functions | LI |
| control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity |
25 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 16 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| mechanical durability | 20000 cycles |
| electrical durability |
20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In |
| power dissipation per pole | 3.46 W |
| mounting support | Backplate |
| mounting position |
Horizontal and vertical Flat on the back |
| upside connection | Front |
| downside connection | Front |
| Connection terminals | Compression lug/busbar |
| connection pitch |
35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 9 module |
| trip unit rating | 40 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 600 A |
| earth-leakage protection | Without |
| Number of slots for electrical auxiliaries |
1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| local signalling | Flag (green) for presence of auxiliary contacts |
| Width (W) | 81 mm |
| Height (H) | 137 mm |
| Depth (D) | 80 mm |
| net weight | 1.06 kg |
| colour | Grey (RAL 7016) |
| standards | EN/IEC 60947 |
|---|---|
| pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| relative humidity | 0…95 % |
| operating altitude |
2000 m without derating 5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.3 kg |
| Package 1 Height | 13.0 cm |
| Package 1 width | 9.0 cm |
| Package 1 Length | 22.0 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 216 |
| Package 2 Weight | 304.89 kg |
| Package 2 Height | 150.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 9 |
| Package 3 Weight | 12.29 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
