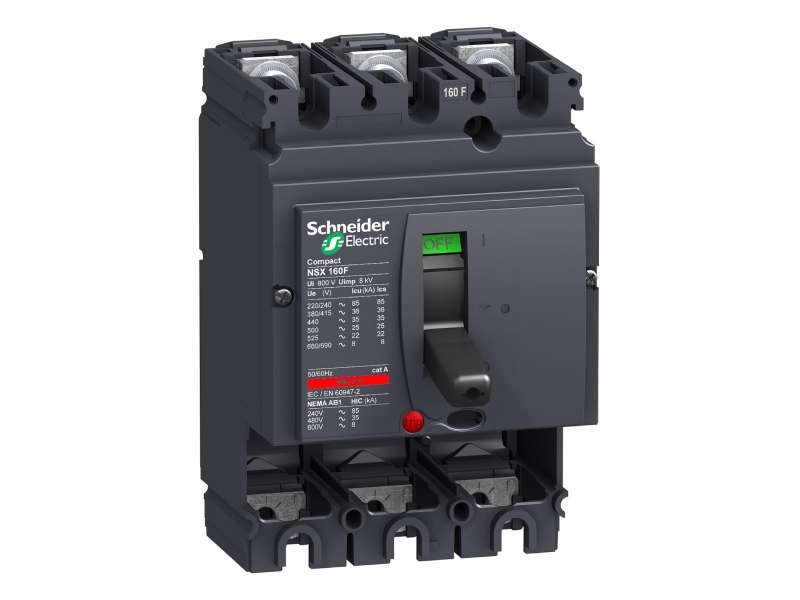

Schneider Electric Prekidač Compact NSX160F - 160 A - 3P - bez zaštitne jedinice;LV430403
Circuit breaker basic frame, ComPact NSX160F, 36 kA at 415 VAC 50/60 Hz, 160 A, without trip unit, 3 poles...
VAT-exclusive price: 23.777,52 |
VAT-inclusive price: 28.533,03 |
Circuit breaker basic frame, ComPact NSX160F, 36 kA at 415 VAC 50/60 Hz, 160 A, without trip unit, 3 poles
| range |
ComPact
|
|
|---|---|---|
| range of product |
ComPact NSX100...250
|
|
| device short name |
NSX160F
|
|
| product or component type |
Basic frame
|
|
| device application |
Distribution
|
|
| circuit breaker name |
Compact NSX160F
|
|
| Number of poles |
3P
|
|
| [In] rated current |
160 A at 40 °C
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| network type |
AC
|
|
| network frequency |
50/60 Hz
|
|
| suitability for isolation |
Yes conforming to EN/IEC 60947-2
|
|
| utilisation category |
Category A
|
|
| [Icu] rated ultimate short-circuit breaking capacity |
10 kA at 600 V AC 50/60 Hz conforming to UL 508
85 kA at 240 V AC 50/60 Hz conforming to UL 508 22 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 35 kA at 480 V AC 50/60 Hz conforming to UL 508 30 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| Performance level |
F 36 kA 415 V AC
|
|
| control type |
Toggle
|
|
| mounting mode |
Fixed
|
| [Ui] rated insulation voltage |
800 V AC 50/60 Hz conforming to IEC 60947-2
|
|
|---|---|---|
| [Uimp] rated impulse withstand voltage |
8 kV conforming to IEC 60947-2
|
|
| [Ics] rated service short-circuit breaking capacity |
35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 85 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 22 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 8 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| mechanical durability |
40000 cycles conforming to IEC 60947-2
|
|
| electrical durability |
40000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
15000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 20000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 7500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 |
|
| mounting support |
Backplate
|
|
| upside connection |
Front
|
|
| downside connection |
Front
|
|
| connection pitch |
35 mm
|
|
| protection type |
Without protection
|
|
| Width (W) |
105 mm
|
|
| Height (H) |
161 mm
|
|
| Depth (D) |
86 mm
|
| standards |
EN/IEC 60947-2
UL 508 |
|
|---|---|---|
| product certifications |
UL
CSA |
|
| pollution degree |
3 conforming to IEC 60664-1
|
|
| IP degree of protection |
IP40 conforming to IEC 60529
|
|
| IK degree of protection |
IK07 conforming to IEC 62262
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-50…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.48 kg
|
|
| Package 1 Height |
13.6 cm
|
|
| Package 1 width |
11.5 cm
|
|
| Package 1 Length |
19.2 cm
|
-
ComPact NSX LV430403
