Name: Schneider Electric Prekidač Compact NSX100B - TMD - 16 A - 3P 2d; LV429547
Brand: Schneider Electric
SKU: LV429547
Price: 12941.73 RSD
Availability: OutOfStock

Schneider Electric Prekidač Compact NSX100B - TMD - 16 A - 3P 2d; LV429547

circuit breaker ComPact NSX100B, 25 kA at 415 VAC, TMD trip unit 16 A, 3 poles 2d...

Brand: Schneider Electric
Product Code: LV429547
Availability: Check availability

VAT-exclusive price: 10.784,78

VAT-inclusive price: 12.941,73

Qnt:

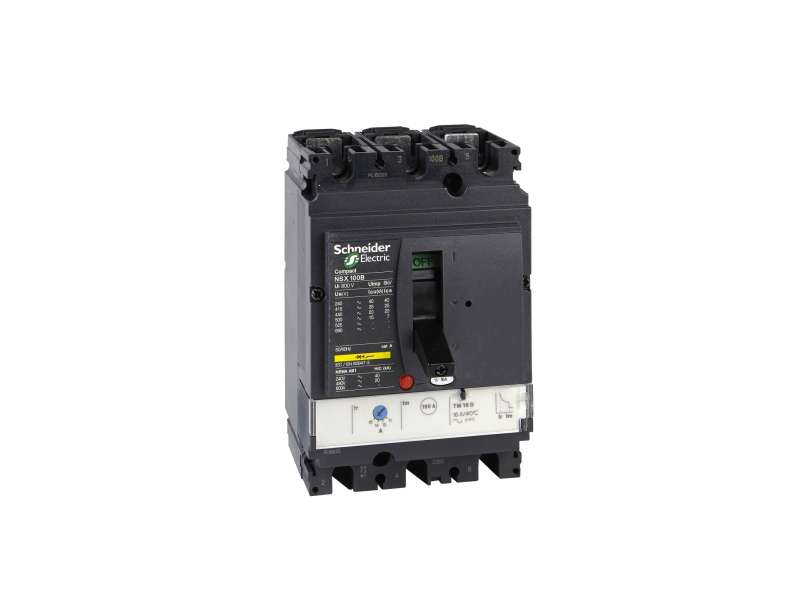

circuit breaker ComPact NSX100B, 25 kA at 415 VAC, TMD trip unit 16 A, 3 poles 2d

Main
range	Compact
product name	Compact NSX
range of product	NSX100...250
device short name	Compact NSX100B
product or component type	Circuit breaker
device application	Distribution
poles description	3P
protected poles description	2t
[In] rated current	16 A at 40 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz
network type	AC
network frequency	50/60 Hz
suitability for isolation	Yes conforming to EN/IEC 60947-2
utilisation category	Category A
[Icu] rated ultimate short-circuit breaking capacity	15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Performance level	B 25 kA 415 V AC
trip unit name	TM-D
trip unit technology	Thermal-magnetic
trip unit protection functions	LI
control type	Toggle
Circuit breaker mounting mode	Fixed

Complementary
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ics] rated service short-circuit breaking capacity	20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability	50000 cycles
electrical durability	10000 cycles at 690 V In 20000 cycles at 690 V In/2 30000 cycles at 440 V In 50000 cycles at 440 V In/2
mounting support	Backplate
upside connection	Front
downside connection	Front
connection pitch	35 mm
protection type	L : for overload protection (thermal) I : for short-circuit protection (magnetic)
trip unit rating	16 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection)	Adjustable
[Ir] long-time protection pick-up adjustment range	0.7...1 x In
Long-time protection delay adjustment type tr	Fixed
[tr] long-time protection delay adjustment range	120…400 s at 1.5 x In 15 s at 6 x Ir
Short-time protection pick-up adjustment type Isd	Fixed
[Isd] Short-time protection pick-up adjustment range	190 A
Short-time protection delay adjustment type tsd	Fixed
earth-leakage protection	Without
Number of slots for electrical auxiliaries	5 slot(s)
Width (W)	105 mm
Height (H)	161 mm
Depth (D)	86 mm
net weight	2.05 kg

Environment
standards	EN/IEC 60947
product certifications	CCC EAC Marine
overvoltage category	Class II
electrical shock protection class	Class II
pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
IK degree of protection	IK07 conforming to IEC 62262
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C
relative humidity	0…95 %
operating altitude	0...2000 m without derating 2000 m...5000 m with derating

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
