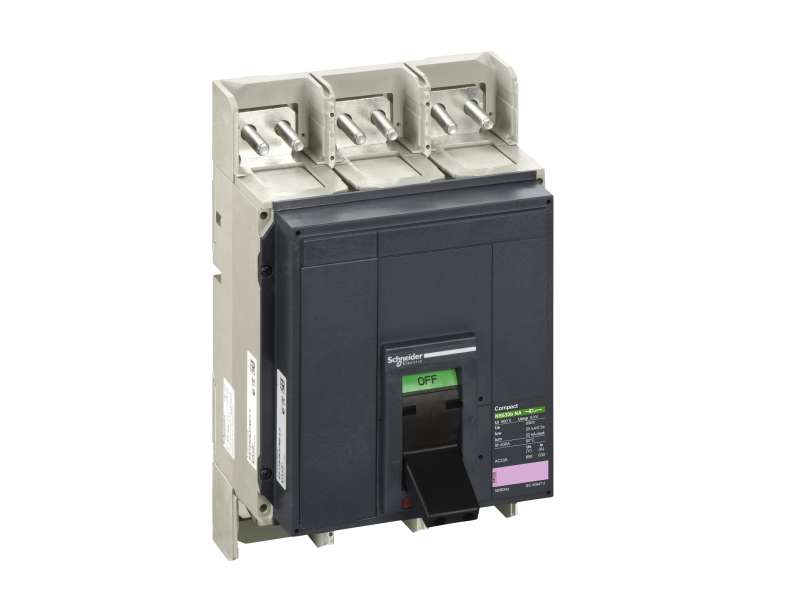

Schneider Electric Prekidač Compact NS800N - 3P - 800 A - fiksni - bez zaštitne jedinice ; 33230
circuit breaker basic frame, ComPact NS 800N, 50 kA at 415 VAC, 800 A, fixed, manually operated, without trip unit, 3 P...
VAT-exclusive price: 202.869,00 |
VAT-inclusive price: 243.442,80 |
circuit breaker basic frame, ComPact NS 800N, 50 kA at 415 VAC, 800 A, fixed, manually operated, without trip unit, 3 P
| range |
Compact
|
|
|---|---|---|
| range of product |
NS630b...1600
|
|
| device short name |
Compact NS800N
|
|
| product or component type |
Basic frame
|
|
| device application |
Distribution
|
|
| poles description |
3P
|
|
| [In] rated current |
800 A at 50 °C
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| network type |
AC
|
|
| network frequency |
50/60 Hz
|
|
| suitability for isolation |
Yes conforming to EN/IEC 60947-2
|
|
| utilisation category |
Category B
|
|
| [Icu] rated ultimate short-circuit breaking capacity |
30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| Performance level |
N 50 kA 415 V AC
|
|
| control type |
Toggle
Rotary handle |
|
| mounting mode |
Fixed
|
| [Ui] rated insulation voltage |
800 V AC 50/60 Hz conforming to IEC 60947-2
|
|
|---|---|---|
| [Uimp] rated impulse withstand voltage |
8 kV conforming to IEC 60947-2
|
|
| [Ics] rated service short-circuit breaking capacity |
30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation)
40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) |
|
| [Icw] rated short-time withstand current |
19.2 kA 1 s conforming to IEC 60947-2
|
|
| integral instant protection |
40 kA
|
|
| mechanical durability |
10000 cycles conforming to IEC 60947-2
|
|
| electrical durability |
2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2
4000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 6000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
|
| power losses |
15 W
|
|
| mounting support |
Backplate
|
|
| connection pitch |
70 mm
|
|
| protection type |
Without protection
|
|
| Height (H) |
327 mm
|
|
| Width (W) |
210 mm
|
|
| Depth (D) |
147 mm
|
| standards |
IEC 60947-2
|
|
|---|---|---|
| product certifications |
ASEFA
ASTA LCIE |
|
| pollution degree |
3 conforming to IEC 60947
|
|
| IP degree of protection |
IP40 conforming to IEC 60529
|
|
| IK degree of protection |
IK07 conforming to EN 50102
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-50…85 °C
|
| Package 1 Weight |
10.076 kg
|
|---|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
ComPact NS 33230
