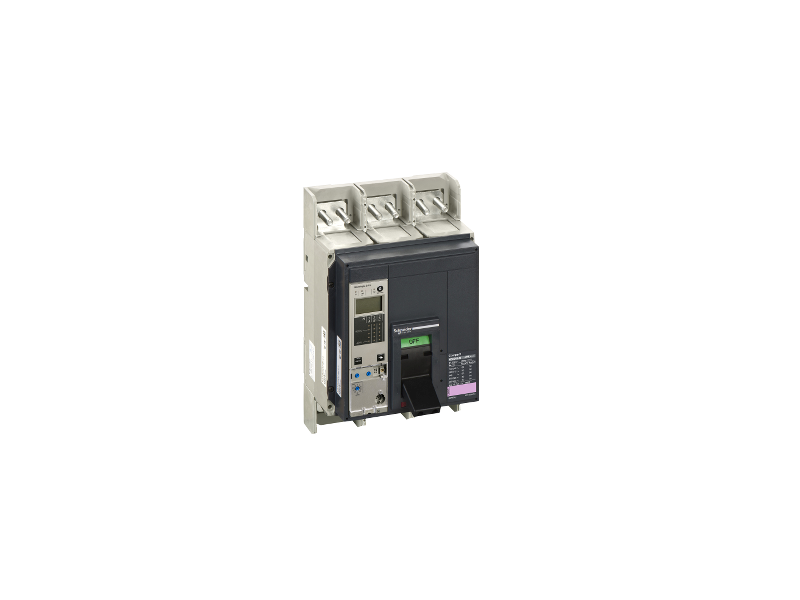

Name: Schneider Electric Prekidač Compact NS630bN - Micrologic 2.0 A - 630 A - 3P 3t ; 33223
Brand: Schneider Electric
SKU: 33223
Price: 376966.80 RSD
Availability: OutOfStock

Schneider Electric Prekidač Compact NS630bN - Micrologic 2.0 A - 630 A - 3P 3t ; 33223

circuit breaker ComPact NS630bN, 50 kA at 415 VAC, Micrologic 2.0 A trip unit, 630 A, fixed,3 poles 3d...

Brand: Schneider Electric
Product Code: 33223
Availability: Check availability

VAT-exclusive price: 314.139,00

VAT-inclusive price: 376.966,80

Qnt:

circuit breaker ComPact NS630bN, 50 kA at 415 VAC, Micrologic 2.0 A trip unit, 630 A, fixed,3 poles 3d

Main
range	Compact
product name	Compact NS
range of product	NS630b...1600
device short name	Compact NS630bN
product or component type	Circuit breaker
device application	Distribution
poles description	3P
protected poles description	3d
(In) rated current up to 65 °C	630 A at 50 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz
network type	AC
network frequency	50/60 Hz
suitability for isolation	Yes conforming to EN/IEC 60947-2
utilisation category	Category B
[Icu] rated ultimate short-circuit breaking capacity	30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Performance level	N 50 kA 415 V AC
trip unit name	Micrologic 2.0 A
trip unit technology	Electronic
trip unit protection functions	LI
control type	Rotary handle Toggle
Circuit breaker mounting mode	Fixed

Complementary
[Ui] rated insulation voltage	800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
[Icw] rated short-time withstand current	19.2 kA 1 s conforming to IEC 60947-2
mechanical durability	10000 cycles
electrical durability	2000 cycles at 690 V In 4000 cycles at 690 V In/2 5000 cycles at 440 V In 6000 cycles at 440 V In/2
power losses	10 W
mounting support	Backplate
upside connection	Front
downside connection	Front
connection pitch	70 mm
protection type	L : for overload protection (long time) I : for instantaneous short-circuit protection
trip unit rating	630 A at 50 °C
Long-time pick-up adjustment type Ir (thermal protection)	Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range	0.4...1 x In
Long-time protection delay adjustment type tr	Adjustable 9 settings
[tr] long-time protection delay adjustment range	12.5…600 s at 1.5 x Ir 0.5…24 s at 6 x Ir 0.7…16.6 s at 7.2 x Ir
thermal memory	20 mn
Instantaneous protection pick-up adjustment type Ii	Adjustable
[Ii] instantaneous protection pick-up adjustment range	1.5...10 x Ir
earth-leakage protection	Without
zone selective interlocking ZSI	With
auxiliary contact composition	1 NO/NC
local signalling	4 LEDs (red) for fault indication 1 LED (yellow) for overload
display type	LCD display
type of measurement	Ammeter
Width (W)	210 mm
Height (H)	327 mm
Depth (D)	147 mm
net weight	14 kg

Environment
standards	EN/IEC 60947-2
product certifications	ASTA ASEFA
pollution degree	3 conforming to IEC 60947
IP degree of protection	IP40 conforming to IEC 60529
IK degree of protection	IK07 conforming to EN 50102
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
relative humidity	0…95 %
operating altitude	0...2000 m without derating 2000 m...5000 m with derating

Packing Units
Package 1 Weight	11.890 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
