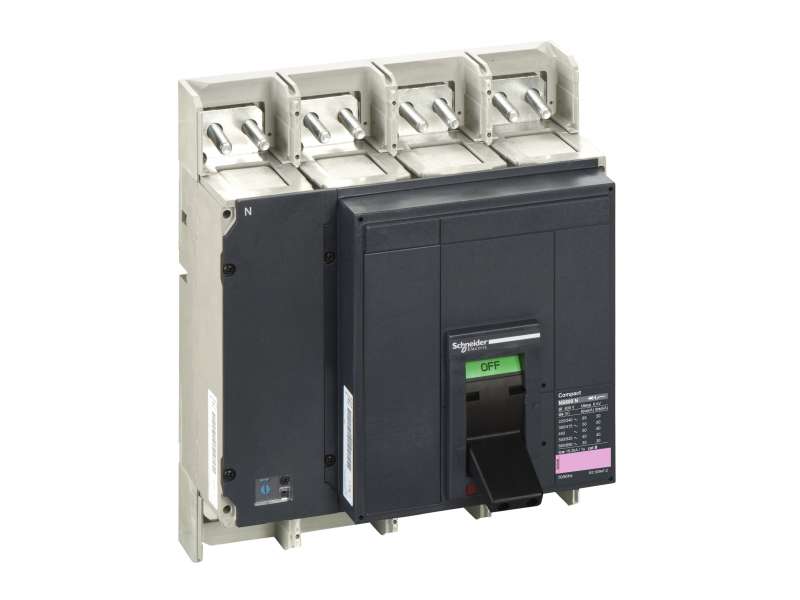

Name: Schneider Electric Prekidač Compact NS630bN - 630 A - 4P - fiksni - bez zaštitne jedinice ; 33224
Brand: Schneider Electric
SKU: 33224
Price: 271047.60 RSD
Availability: OutOfStock

Schneider Electric Prekidač Compact NS630bN - 630 A - 4P - fiksni - bez zaštitne jedinice ; 33224

circuit breaker basic frame, ComPact NS 630bN, 50 kA at 415 VAC, 630 A, fixed, manually operated, without trip unit, 4 P...

Brand: Schneider Electric
Product Code: 33224
Availability: Check availability

VAT-exclusive price: 225.873,00

VAT-inclusive price: 271.047,60

Qnt:

circuit breaker basic frame, ComPact NS 630bN, 50 kA at 415 VAC, 630 A, fixed, manually operated, without trip unit, 4 P

Main
range	Compact
range of product	NS630b...1600
device short name	Compact NS630bN
product or component type	Basic frame
device application	Distribution
poles description	4P
neutral position	Left
[In] rated current	630 A at 50 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz
network type	AC
network frequency	50/60 Hz
suitability for isolation	Yes conforming to EN/IEC 60947-2
utilisation category	Category B
[Icu] rated ultimate short-circuit breaking capacity	30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
Performance level	N 50 kA 415 V AC
control type	Rotary handle Toggle
mounting mode	Fixed

Complementary
[Ui] rated insulation voltage	800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation)
[Icw] rated short-time withstand current	19.2 kA 1 s conforming to IEC 60947-2
integral instant protection	40 kA
mechanical durability	10000 cycles conforming to IEC 60947-2
electrical durability	2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 4000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 6000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
power losses	10 W
mounting support	Backplate
connection pitch	70 mm
protection type	Without protection
Height (H)	327 mm
Width (W)	280 mm
Depth (D)	147 mm

Environment
standards	IEC 60947-2
product certifications	ASTA LCIE ASEFA
pollution degree	3 conforming to IEC 60947
IP degree of protection	IP40 conforming to IEC 60529
IK degree of protection	IK07 conforming to EN 50102
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Packing Units
Package 1 Weight	14.731 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
