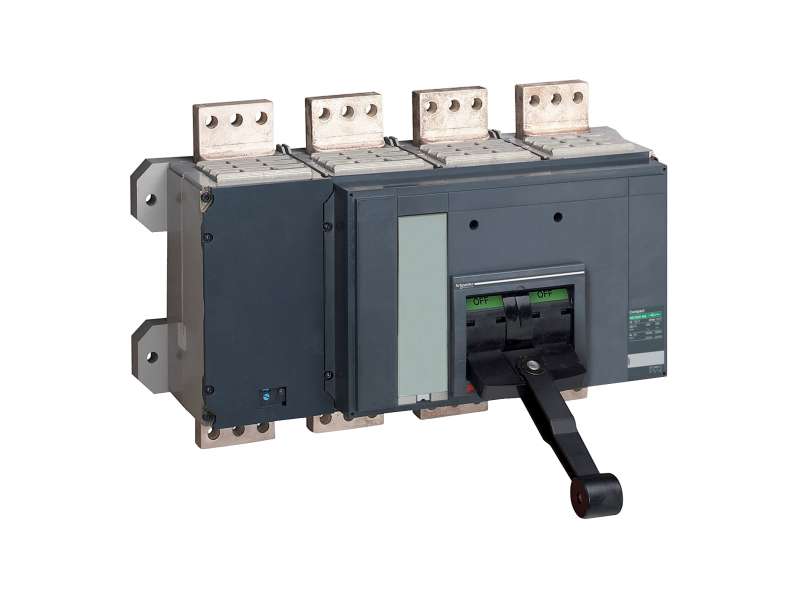

Schneider Electric Prekidač Compact NS1600bH 1600 A - 4P - fiksni - bez zaštitne jedinice
circuit breaker basic frame, ComPact NS1600bH, 70 kA at 415 VAC, 1600 A, fixed, manually operated, without trip unit, 4 P...
VAT-exclusive price: 722.101,00 |
VAT-inclusive price: 866.521,20 |
circuit breaker basic frame, ComPact NS1600bH, 70 kA at 415 VAC, 1600 A, fixed, manually operated, without trip unit, 4 P
| range | ComPact |
|---|---|
| range of product | ComPact NS1600b...3200 |
| device short name | Compact NS1600bH |
| product or component type | Basic frame |
| device application | Distribution |
| Number of poles | 4P |
| neutral position | Left |
| [In] rated current | 1600 A at 50 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| network type | AC |
| network frequency | 50/60 Hz |
| suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity |
125 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 85 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | H 70 kA 415 V AC |
| control type | Toggle |
| mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity |
64 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 64 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) 94 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 (manual operation) |
| [Icw] rated short-time withstand current | 32 kA 3 s conforming to IEC 60947-2 |
| integral instant protection | 130 kA |
| mechanical durability | 5000 cycles conforming to IEC 60947-2 |
| electrical durability |
1000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2 2000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2 2000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2 3000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2 |
| power losses | 84 W |
| mounting support | Backplate |
| upside connection | Front |
| downside connection | Front |
| connection pitch | 115 mm |
| protection type | Without protection |
| Height (H) | 350 mm |
| Width (W) | 535 mm |
| Depth (D) | 160 mm |
| standards | IEC 60947-2 |
|---|---|
| product certifications |
ASTA ASEFA LCIE |
| pollution degree | 3 conforming to IEC 60947 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 49.153 kg |
| Package 1 Height | 45 cm |
| Package 1 width | 60 cm |
| Package 1 Length | 80 cm |
| REACh Regulation | REACh Declaration |
|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| PVC free | Yes |
| California proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Warranty | 18 months |
|---|
-
ComPact NS 34004
