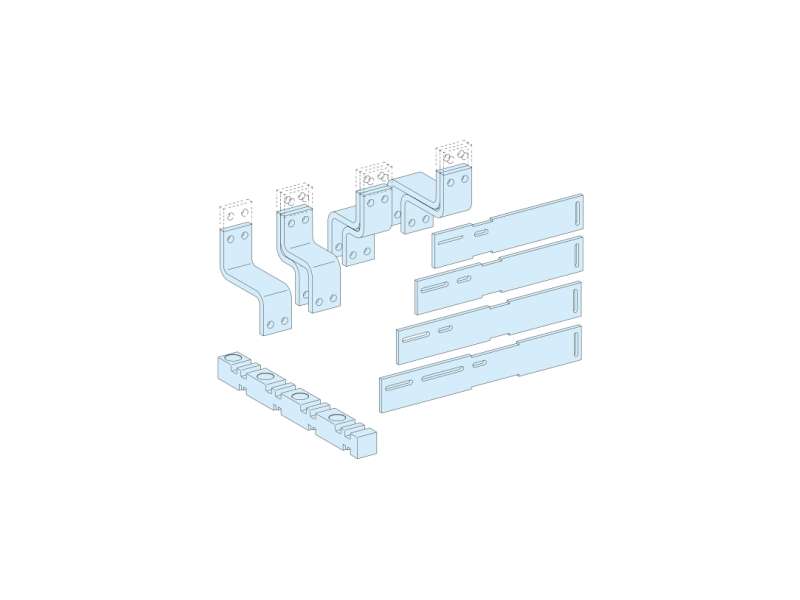

Schneider Electric Prefabrik. priključak za vertikalne ugradnje,fiksni MTZ1/NT, 4P 1600A, Prisma P; LVS04490
Connection, PrismaSeT P, for MTZ1/NT, 4P, 1600A, fixed...
VAT-exclusive price: 71.102,00 |
VAT-inclusive price: 85.322,40 |
Connection, PrismaSeT P, for MTZ1/NT, 4P, 1600A, fixed
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Connection |
| product name | PrismaSeT (PrismaSeT P) enclosure |
| Accessory / separate part category | Current distribution accessory |
| Standards |
IEC 61439-2, inside enclosure IEC 61439-1, inside enclosure |
| Product certifications | ASTA |
| Cubicle-device connection | Linergy busbar |
|---|---|
| Poles description | 4P |
| installation description | Cubicle - width 650 mm |
| Cubicle depth |
400 mm: front 400 + 400 mm: rear |
| Installed device |
Masterpact: fixed NT16 - control: toggle vertical installation Masterpact: fixed NT16 - control: motor mechanism vertical installation |
| [Ie] rated operational current | 1600 A |
| Busbar cross section | 80 x 10 mm |
| Height | 150 mm |
| Width | 550 mm |
| Depth | 300 mm |
| Net weight | 18.34 kg |
| Quantity per set | Set of 1 |
| functional unit |
650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 front connection on adaptor 14 650 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 front connection on adaptor 14 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 rear connection on adaptor 11 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 rear connection on adaptor 11 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 4P 1 rear connection on Canalis 16 650 mm 800 mm PrismaSeT P cubicle Masterpact NT16 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.0 cm |
| Package 1 Width | 12.0 cm |
| Package 1 Length | 54.0 cm |
| Package 1 Weight | 17.816 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 28 |
| Package 2 Height | 37.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 510.0 kg |
