Schneider Electric Prefabr. priključak za vert. ugradnje, fiksni INS-INV, 3P 1600A, na Linergy LGY; LVS04481

Connection, Linergy LGY, for INS-INV, 3P, 1600A, vertical fixed...

Brand: Schneider Electric
Product Code: LVS04481
Availability: Check availability

VAT-exclusive price: 62.385,00

VAT-inclusive price: 74.862,00

Qnt:

Description
Specification

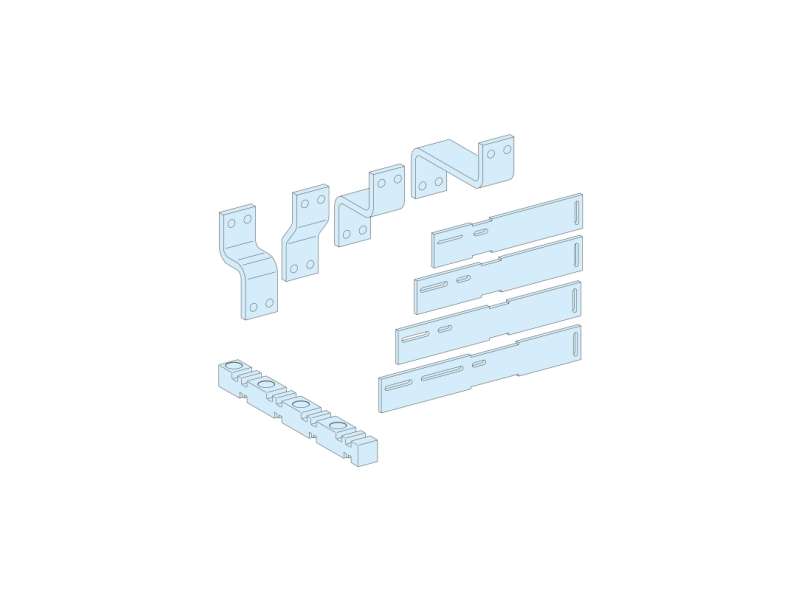

Connection, Linergy LGY, for INS-INV, 3P, 1600A, vertical fixed

Main
Range	PrismaSeT
Range of product	PrismaSeT P
Product or component type	Connection
product name	PrismaSeT (PrismaSeT P) enclosure
Accessory / separate part category	Current distribution accessory
Standards	IEC 61439-2, inside enclosure IEC 61439-1, inside enclosure
Product certifications	ASTA

Complementary
Cubicle-device connection	Linergy busbar
Poles description	3P
installation description	Cubicle - width 650 mm
Installed device	ComPact: fixed INS630b...1600 - control: direct front rotary handle vertical installation ComPact: fixed INV630b...1600 - control: direct front rotary handle vertical installation
[Ie] rated operational current	1600 A
Busbar cross section	80 x 10 mm
Net weight	14.32 kg
Quantity per set	Set of 1
functional unit	650 mm 400 mm PrismaSeT P cubicle ComPact INS630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14 650 mm 400 mm PrismaSeT P cubicle ComPact INV630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.0 cm
Package 1 Width	12.0 cm
Package 1 Length	58.0 cm
Package 1 Weight	14.488 kg
Unit Type of Package 2	P12
Number of Units in Package 2	28
Package 2 Height	39.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	417.0 kg
