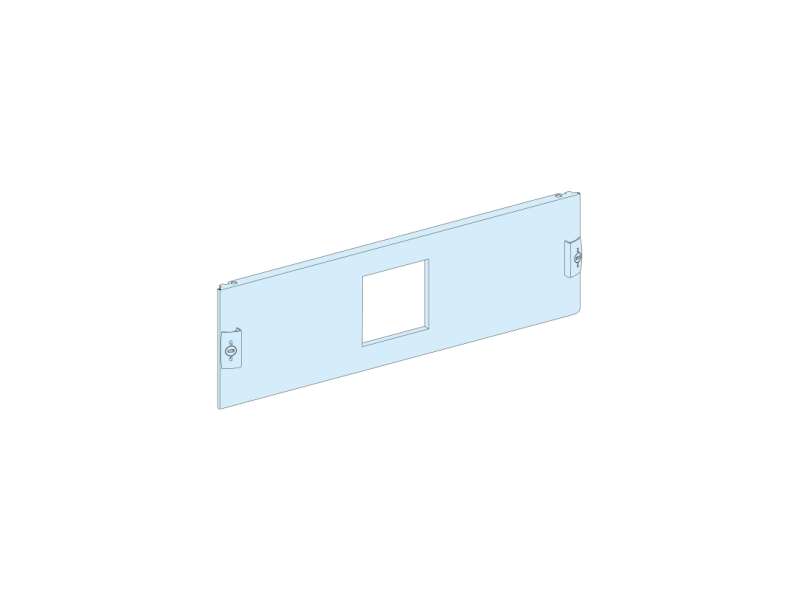

Schneider Electric Prednja ploča sa 1 izrezom 96x96 Š600/650 3M; LVS03913

Front plate, PrismaSeT P and G, for Power meter/other devices 96x96 with 1 cut out, 3M, W600...

Brand: Schneider Electric
Product Code: LVS03913
Availability: Check availability

VAT-exclusive price: 2.238,00

VAT-inclusive price: 2.685,60

Qnt:

Description
Specification

Front plate, PrismaSeT P and G, for Power meter/other devices 96x96 with 1 cut out, 3M, W600

Main
Range	PrismaSeT
Range of product	PrismaSeT G PrismaSeT P
Product or component type	Front plate
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) cubicle
Type of front plate	Cut-out
type of front plate	Cut-out
Installed device	Human-switchboard interface: 96 x 96 mm device PowerLogic: PM5500 Human-switchboard interface: HSI PowerLogic: PM400...800 PowerLogic: PM5100 PowerLogic: PM5300 PowerLogic: PM5563RD Enerlin'X: FDM121

Complementary
Enclosure/cubicle description	Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 650 mm depth 400 mm
Number of vertical modules [50 mm]	3
Standards	IEC 61439-2 IEC 61439-1
Product certifications	ASTA
Material	Steel
Surface finish	Textured Matt
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Colour	White (RAL 9003)
Height	150 mm
Width	500 mm
Net weight	0.62 kg
Quantity per set	Set of 1
functional unit	600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 96 x 96 mm device 1 3 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 96 x 96 mm device 1 3 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 96 x 96 mm device 1 3 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 1 3 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 1 3 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 1 3 600 mm PrismaSeT G floor-standing enclosure PowerLogic 1 3 600 mm PrismaSeT G wall-mounted enclosure PowerLogic 1 3 650 mm 400 mm PrismaSeT P cubicle PowerLogic 1 3 600 mm PrismaSeT G floor-standing enclosure Enerlin'X FDM121 1 3 600 mm PrismaSeT G wall-mounted enclosure Enerlin'X FDM121 1 3 650 mm 400 mm PrismaSeT P cubicle Enerlin'X FDM121 1 3

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.8 cm
Package 1 Width	16.5 cm
Package 1 Length	51.5 cm
Package 1 Weight	623.0 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	17.0 cm
Package 2 Width	17.5 cm
Package 2 Length	53.0 cm
Package 2 Weight	6.382 kg
Unit Type of Package 3	P12
Number of Units in Package 3	90
Package 3 Height	30.0 cm
Package 3 Width	80.0 cm
Package 3 Length	120.0 cm
Package 3 Weight	68.0 kg
