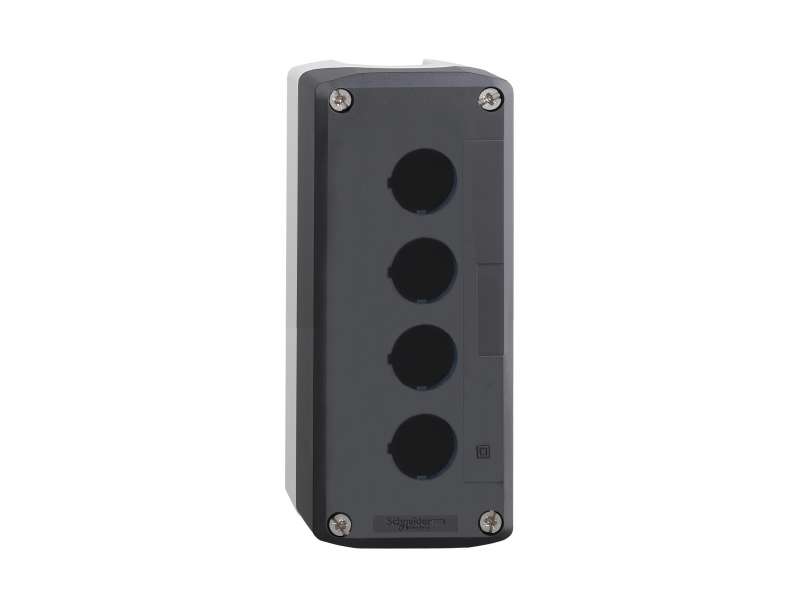

Schneider Electric Prazna kutija sa tamnosivim poklopcem sa svetlosivom osnovom - 4 otvora; XALD04
Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 4 cut out; XALD04...
VAT-exclusive price: 3.046,00 |
VAT-inclusive price: 3.655,20 |
Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 4 cut out; XALD04
| Range of product | Harmony XALD |
|---|---|
| Product or component type | Empty control station |
| Device short name | XALD |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Number of cut-out | 4 cut-outs |
| Colour of base of enclosure | Light grey (RAL 7035) |
| Colour of cover | Dark grey (RAL 7016) |
| Material | Polycarbonate |
| Cable entry |
2 knock-outs for cable entry, clamping capacity: 14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection |
IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| Assembly style | For customer assembly |
|---|---|
| Number of horizontal rows | 1 |
| Number of vertical rows | 4 |
| Net weight | 0.278 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Mounting of block |
Front mounting Rear mounting |
| Electrical composition code |
SR1 SR2 SF2 SF1 MF2 MF1 PF2 PR1 PF1 MR1 |
| Main group | 4 cut-outs |
| Group of product | Standard grey |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| NEMA degree of protection |
NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to EN 50102 |
| Standards |
EN/IEC 60947-5-5 UL 508 JIS C8201-5-1 EN/IEC 60947-5-1 EN/IEC 60947-5-4 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-1 |
