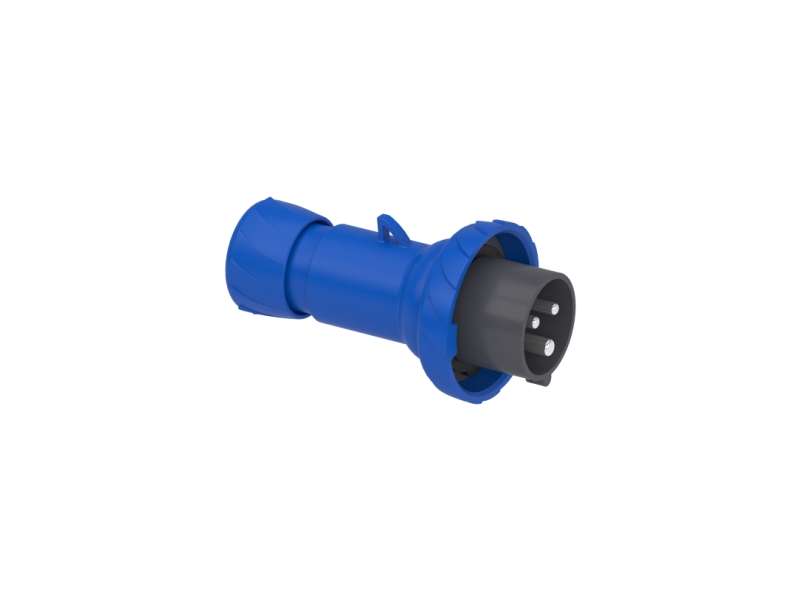

Schneider Electric PratiKa Wander utikač - ravni - 16 A - 2P + E - 200...250 V AC - IP67; PKE16M723
PratiKa wander plug - straight - 16 A - 2P + E - 200...250 V AC - IP67; PKE16M723...
VAT-exclusive price: 1.122,00 |
VAT-inclusive price: 1.346,40 |
PratiKa wander plug - straight - 16 A - 2P + E - 200...250 V AC - IP67; PKE16M723
| Range | Mureva |
|---|---|
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 8…15 mm |
| Cable entry |
Cable gland Fair lead |
| Thread type | Pg 16 |
| Net weight | 0.144 kg |
| Height | 129 mm |
| Width | 73 mm |
| Depth | 73 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Standards |
IEC 60309-2 IEC 60309-1 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity |
50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation |
35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.100 cm |
| Package 1 Width | 7.100 cm |
| Package 1 Length | 14.100 cm |
| Package 1 Weight | 178.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 12.400 cm |
| Package 2 Width | 26.400 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 1.780 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 30 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.740 kg |
| Warranty | 18 months |
|---|
-
Pratika PKE16M723
