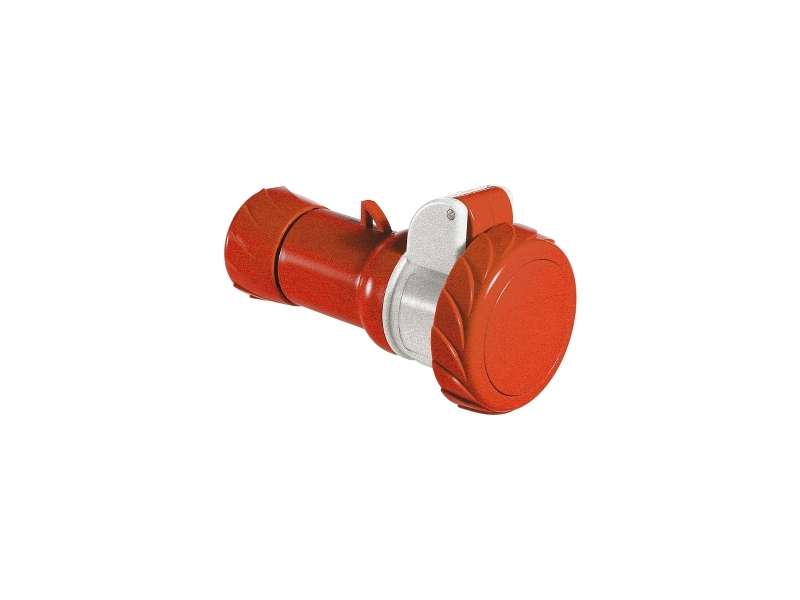

Schneider Electric PratiKa Wander utičnica - ravna - 16 A - 3P + N + E - 380...415 V AC - IP67 ; PKF16M735
PratiKa wander socket - straight - 16 A - 3P + N + E - 380...415 V AC - IP67...
VAT-exclusive price: 1.972,00 |
VAT-inclusive price: 2.366,40 |
PratiKa wander socket - straight - 16 A - 3P + N + E - 380...415 V AC - IP67
| range | PratiKa |
|---|---|
| product or component type | Wander socket |
| device short name | PratiKa socket |
| plug, socket category | Low voltage |
| poles description | 3P + N + E |
| network type | AC |
| outlet standard | Industrial |
| plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| plug, socket material | Housing: self-extinguishing engineering polymer |
| contacts material | Sleeves: brass |
| connections - terminals | Captive screws |
| cable cross section | 1…4 mm² |
| cable outer diameter | 8…15 mm |
| cable entry | Cable gland |
| thread type | Pg 21 |
| net weight | 0.25 kg |
| height | 96 mm |
| width | 96 mm |
| depth | 155 mm |
| colour | Grey (RAL 7035) |
| voltage colour | Red |
| standards |
IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| relative humidity |
50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| ambient air temperature for operation |
35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 244.0 g |
| Package 1 Height | 9.0 cm |
| Package 1 width | 9.0 cm |
| Package 1 Length | 17.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Weight | 4.715 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 8 |
| Package 3 Weight | 2.114 kg |
| Package 3 Height | 18.2 cm |
| Package 3 width | 26.6 cm |
| Package 3 Length | 27.0 cm |
| Warranty | 18 |
|---|
