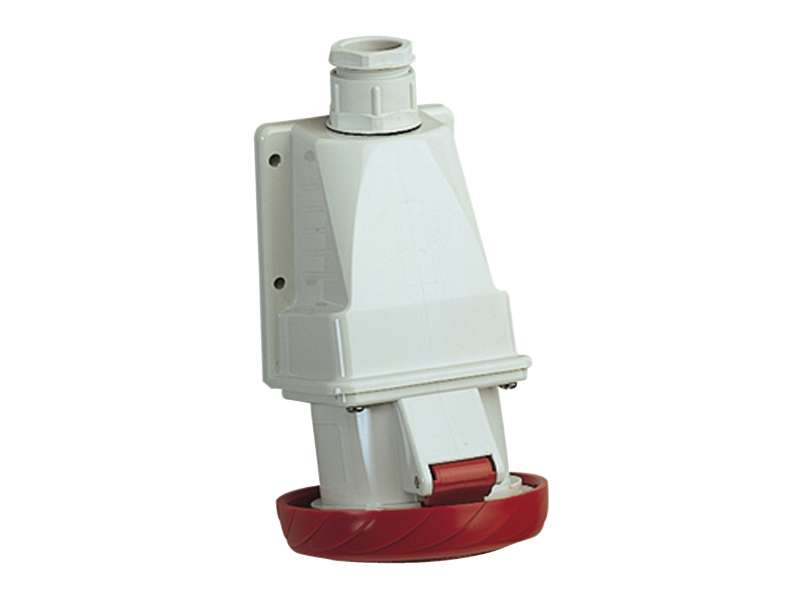

Schneider Electric PratiKa utičnica za kontejner - 32 A - 3P+E - 400..440 V AC - IP 67 ; PKF32W7C4
PratiKa socket for container - 32 A - 3P+E - 400..440 V AC - IP 67...
VAT-exclusive price: 5.613,00 |
VAT-inclusive price: 6.735,60 |
PratiKa socket for container - 32 A - 3P+E - 400..440 V AC - IP 67
| range of product |
PratiKa
|
|
|---|---|---|
| product or component type |
Socket for container
|
|
| device short name |
PratiKa socket
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
3P + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| mounting mode |
Wall-mounted
|
|
|---|---|---|
| [In] rated current |
32 A
|
|
| [Ue] rated operational voltage |
400...440 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
3 h
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Sleeves: brass
|
|
| net weight |
0.38 kg
|
|
| height |
191 mm
|
|
| width |
106 mm
|
|
| depth |
148 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Red
|
| standards |
EN 60309-1
EN 60309-2 |
|
|---|---|---|
| IP degree of protection |
IP67 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
|
| Package 1 Weight |
0.446 kg
|
|
|---|---|---|
| Package 1 Height |
1.040 dm
|
|
| Package 1 width |
1.610 dm
|
|
| Package 1 Length |
0.810 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Pratika PKF32W7C4
