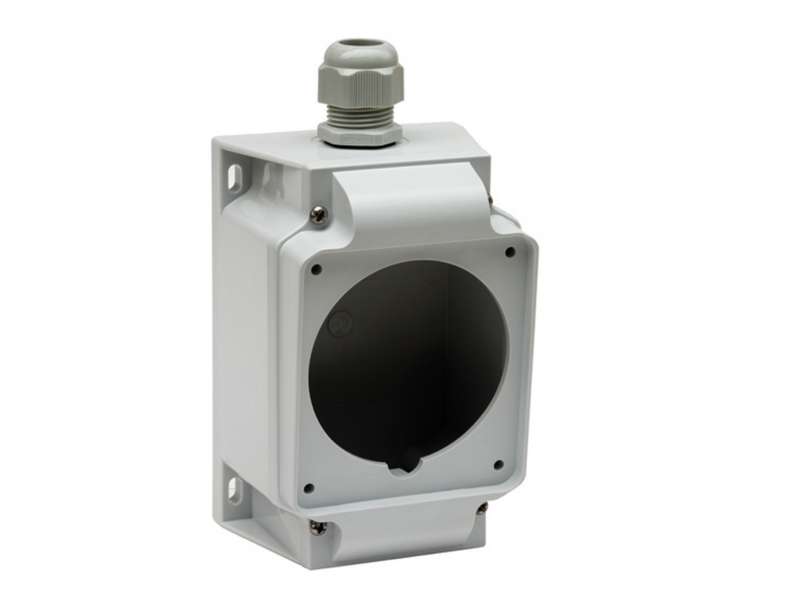

Schneider Electric PratiKa - kutija - 16/32 A - 3/4/5 P - nadgradna - 90 x 100 mm - IP67 ; PKZ100
PratiKa - back box - 16/32 A - 3/4/5 P - surface mounted - 90 x 100 mm - IP67...
VAT-exclusive price: 3.083,00 |
VAT-inclusive price: 3.699,60 |
PratiKa - back box - 16/32 A - 3/4/5 P - surface mounted - 90 x 100 mm - IP67
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Back box
|
|
| device short name |
PratiKa socket
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
5P
3P or 4P |
| [In] rated current |
16 A
32 A |
|
|---|---|---|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Screw: stainless steel
|
|
| device mounting |
Surface
|
|
| mounting mode |
Panel-mounted
|
|
| net weight |
0.33 kg
|
|
| base dimension |
90 x 100 mm
|
|
| height |
100 mm
|
|
| width |
90 mm
|
|
| depth |
89 mm
|
|
| colour |
Grey (RAL 7035)
|
| standards |
IEC 60309-1
IEC 60309-2 |
|
|---|---|---|
| IP degree of protection |
IP67 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-11
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
-25…40 °C |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
330 g
|
|
| Package 1 Height |
10.7 cm
|
|
| Package 1 width |
10 cm
|
|
| Package 1 Length |
16.1 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Pratika PKZ100
